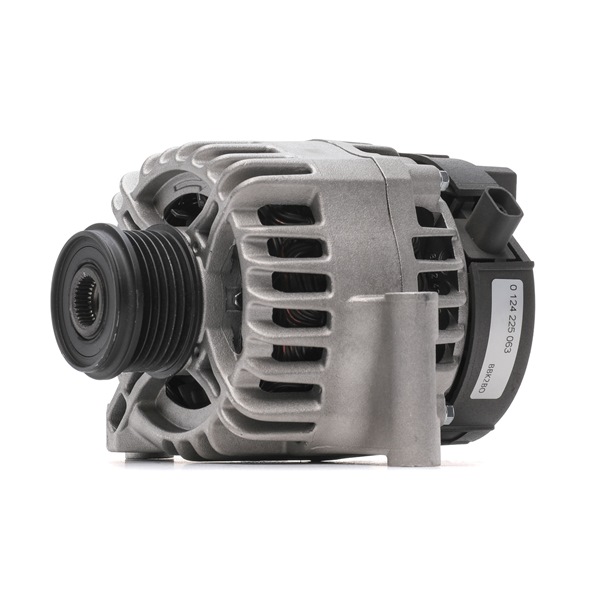

RIDEX 4G0156 Alternator
- Alternator Charging Current [A]: 105
- Voltage [V]: 12
- Pulleys: with freewheel belt pulley
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 54
- Number of grooves: 6
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Fastening Type: 3-point attachment
- Clamp: B+(M8),DFM,L, M8
- Bore Diameter 1 [mm]: 9
- Number of mounting bores: 3
- Number of threaded holes: 0
- Distance from belt pulley to alternator [mm]: 41
- Net weight [kg]: 5,3
- Manufacturer part number: 4G0156
- Manufacturer: RIDEX
- EAN number: 4059191704187
- Weight [kg]: 5.394
- The actual appearance of the product may differ from the image
- OEM number
- Suitable vehicles
- Top sellers in your country
OEM number
- OPEL 13222935
- OPEL 13256932
- OPEL 6204258
- OPEL 6204283
Suitable vehicles
FIAT
-
FIAT Grande Punto Hatchback (199) (Year of Construction 10.2005 - 06.2013, 75 PS, Diesel)
OPEL
-
OPEL Agila A (H00) (Year of Construction 08.2003 - 12.2007, 70 PS, Diesel)
-
OPEL Agila B (H08) (Year of Construction 04.2008 - 04.2010, 75 PS, Diesel)
-
OPEL Astra H Hatchback (A04) (Year of Construction 08.2005 - 10.2010, 90 PS, Diesel)
-
OPEL Astra H Saloon (A04) (Year of Construction 02.2007 - 10.2010, 90 PS, Diesel)
-
OPEL Astra H Van (L70) (Year of Construction 08.2005 - 10.2010, 90 PS, Diesel)
-
OPEL Corsa C Hatchback (X01) (Year of Construction 06.2003 - 12.2009, 70 PS, Diesel)
-
OPEL Corsa C Van (X01) (Year of Construction 07.2005 - 06.2006, 69 PS, Diesel)
-
OPEL Corsa D Hatchback (S07) (Year of Construction 07.2006 - 08.2014, 75 - 95 PS, Diesel)
-
OPEL Meriva B (S10) (Year of Construction 06.2010 - 11.2014, 75 - 95 PS, Diesel)
-
OPEL Tigra Twintop (X04) (Year of Construction 06.2004 - 12.2010, 69 PS, Diesel)
SUZUKI
-
SUZUKI Ignis II (MH) (Year of Construction 09.2003 - ..., 70 PS, Diesel)
-
SUZUKI Swift III Hatchback (MZ, EZ) (Year of Construction 08.2005 - ..., 69 - 75 PS, Diesel)
-
SUZUKI Wagon R+ II Hatchback (MM) (Year of Construction 09.2003 - ..., 70 PS, Diesel)
VAUXHALL
-
VAUXHALL Agila Mk2 (B) (H08) (Year of Construction 01.2008 - 11.2014, 75 PS, Diesel)
-
VAUXHALL Astra Mk5 (H) Estate (A04) (Year of Construction 08.2004 - 03.2009, 90 PS, Diesel)
-
VAUXHALL Astra Mk5 (H) Hatchback (A04) (Year of Construction 01.2004 - 05.2009, 90 PS, Diesel)
-
VAUXHALL Astra Mk5 (H) Sport Hatch (A04) (Year of Construction 04.2005 - 11.2010, 90 PS, Diesel)
-
VAUXHALL Astravan Mk5 (H) (A04) (Year of Construction 08.2005 - ..., 90 PS, Diesel)
-
VAUXHALL Corsa Mk3 (D) Hatchback (S07) (Year of Construction 08.2006 - 08.2014, 75 - 90 PS, Diesel)
-
VAUXHALL Corsavan Mk3 (D) (S07) (Year of Construction 07.2006 - ..., 75 - 95 PS, Diesel)
-
VAUXHALL Meriva Mk2 (B) (S10) (Year of Construction 06.2010 - 11.2014, 75 - 95 PS, Diesel)
