82B1229
Fitment not confirmed

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Processing: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Availability in stock:

82B0004

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Availability in stock:

82B0018

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Availability in stock:

7O0002

Filter type: Filter Insert, Height: 143, Height 1 [mm]: 97, Diameter: 71,5, Diameter 1 [mm]: 15,2, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0002, Manufacturer: RIDEX, EAN number: 4059191236152

Availability in stock:

686S0005

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Availability in stock:

7O0008

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Seal Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve Type: Overflow Valve, Net Weight [g]: 209, Seal Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Availability in stock:

106B0002

RIDEX High beam bulb

Lamp Type: H7, Light Design: Halogen, Rated Power [W]: 55, Voltage [V]: 12, Bulb Colour: transparent, Colour Temperature [K]: 4000, Socket Type bulb: PX26d, Luminous Flux [lm]: 1500, Manufacturer part number: 106B0002, Manufacturer: RIDEX, EAN number: 4059191822324

Availability in stock:

686S0002

Spark Plug: 1 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Manufacturer part number: 686S0002, Manufacturer: RIDEX, EAN number: 4059191451333

Availability in stock:

686S0009

Electrode Gap [mm]: 1,1, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0009, Manufacturer: RIDEX, EAN number: 4059191451364

Availability in stock:

7O0136

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, Height: 79, Connecting thread: M20x1,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Manufacturer part number: 7O0136, Manufacturer: RIDEX, EAN number: 4059191353385

Availability in stock:

7O0025

Filter type: Spin-on Filter, Outer Diameter [mm]: 81, Height: 77, Thread Size: M20x1,5, Seal Ring Diameter [mm]: 65, Manufacturer part number: 7O0025, Manufacturer: RIDEX, EAN number: 4059191236534

Availability in stock:

686S0122

Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 26,5, Spark Position [mm]: 4, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0122, Manufacturer: RIDEX, EAN number: 4064138039567

Availability in stock:

Compatible parts

82B0085

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 21, Height: 44,8, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 262, Centering Diameter [mm]: 64,1, Number of Holes: 4/8, Wheel Bolt Bore Diameter [mm]: 12,7, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0085, Manufacturer: RIDEX, EAN number: 4059191314904

Availability in stock:

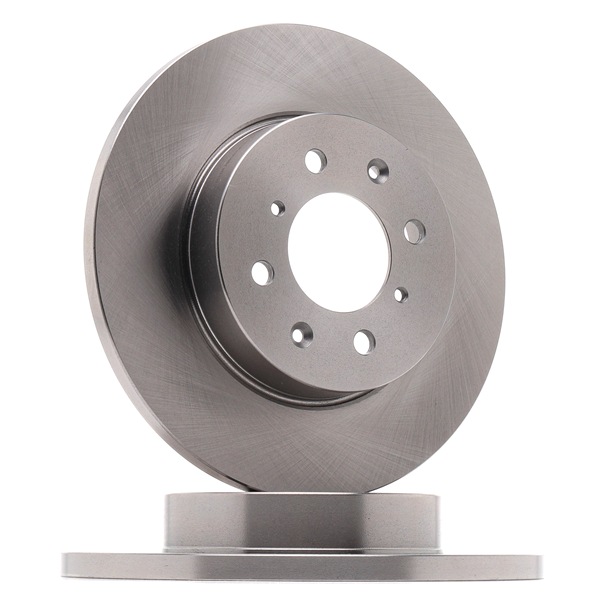

82B0851
