82B1544
Brake disc
- Fitting Position: Front Axle
- Brake Disc Type: solid
- Brake Disc Thickness: 14,2
- Height: 111
- Material: Cast Iron
- Surface: Uncoated
- Outer Diameter [mm]: 267
- Centering Diameter [mm]: 58,3
- Number of Holes: 6/9
- Wheel Bolt Bore Diameter [mm]: 12,5
- Bolt Hole Circle Ø [mm]: 95
- Processing: Untreated
- Drilled: no
- Manufacturer part number: 82B1544
- Manufacturer: RIDEX
- EAN number: 4059191542765
- Weight [kg]: 11.384
- The actual appearance of the product may differ from the image
- OEM number
- Suitable vehicles
- Top sellers in your country
- Compatible parts
OEM number
- ALFA ROMEO 1904529
- ALFA ROMEO 1904592
- ALFA ROMEO 5938118
- ALFA ROMEO 93800492
- FIAT 1904529
- FIAT 1904592
- FIAT 5938118
- FIAT 93800492
- IVECO 1902070
- IVECO 1904529
- IVECO 1904592
- IVECO 5938118
- IVECO 93800492
- LANCIA 1904529
- MAGIRUS-DEUTZ 5938118
- OM 5938118
Suitable vehicles
ALFA ROMEO
-
ALFA ROMEO AR8 Platform/Chassis (280) (Year of Construction 04.1978 - 12.1989, 72 - 92 PS, Diesel)
-
ALFA ROMEO AR8 Van (280) (Year of Construction 04.1985 - 12.1989, 75 - 92 PS, Diesel)
IVECO
-
IVECO Daily I Box Body / Estate (Year of Construction 01.1978 - 12.1989, 72 PS, Diesel)
-
IVECO Daily I Platform / Chassis (Year of Construction 01.1978 - 12.1989, 72 - 92 PS, Diesel)
-
IVECO Daily II Box Body / Estate (Year of Construction 01.1989 - 05.1999, 75 - 122 PS, Diesel)
-
IVECO Daily II Minibus (Year of Construction 09.1996 - 05.1999, 103 PS, Diesel)
-
IVECO Daily II Platform / Chassis (Year of Construction 01.1989 - 05.1999, 75 - 109 PS, Diesel)
Top sellers in your country
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 25,1,
Height: 49,9,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 312,
Centering Diameter [mm]: 65,1,
Number of Holes: 5/10,
Wheel Bolt Bore Diameter [mm]: 15,4,
Bolt Hole Circle Ø [mm]: 112,
Minimum thickness [mm]: 22,0,
Inner Diameter [mm]: 146,0,
Processing: Untreated,
No. of holes 2: 9,
Bore Diameter [mm]: 15,3,
Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws,
Drilled: no,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 82B0031,
Manufacturer: RIDEX,
EAN number: 4059191312726
Availability in stock:
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 22,
Height: 36,7,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 255,7,
Centering Diameter [mm]: 65,
Number of Holes: 5/6,
Wheel Bolt Bore Diameter [mm]: 15,7,
Bolt Hole Circle Ø [mm]: 100,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 82B0004,
Manufacturer: RIDEX,
EAN number: 4059191312610
Availability in stock:
RIDEX Brake disc
Fitting Position: Rear Axle,
Brake Disc Type: solid,
Brake Disc Thickness: 9,9,
Height: 51,3,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 253,
Centering Diameter [mm]: 65,
Number of Holes: 5/10,
Wheel Bolt Bore Diameter [mm]: 15,1,
Bolt Hole Circle Ø [mm]: 112,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 82B0018,
Manufacturer: RIDEX,
EAN number: 4059191312641
Availability in stock:
RIDEX Oil filter
Filter type: Filter Insert,
Outer Diameter [mm]: 65,5,
Height: 99,
Inner Diameter [mm]: 26,
Supplementary Article / Supplementary Info: with gasket/seal, with gaskets/seals,
Manufacturer part number: 7O0013,
Manufacturer: RIDEX,
EAN number: 4059191352807
Availability in stock:
RIDEX Brake pad set
Fitting Position: Rear Axle,
Brake System: TRW / LUCAS / GIRLING,
Wear Warning Contact: not prepared for wear warning indicator,
Supplementary Article / Supplementary Info: with accessories, with spring,
Thickness: 17,
Quantity Unit: Axle Set,
Height: 52,9,
Width [mm]: 87,
for brake disc diameter [mm]: 249,
Manufacturer part number: 402B0029,
Manufacturer: RIDEX,
EAN number: 4059191313075
Availability in stock:
RIDEX Oil filter
Filter type: Filter Insert,
Height: 143,
Height 1 [mm]: 97,
Diameter: 71,5,
Diameter 1 [mm]: 15,2,
Supplementary Article / Supplementary Info: with gaskets/seals,
Manufacturer part number: 7O0002,
Manufacturer: RIDEX,
EAN number: 4059191236152
Availability in stock:
RIDEX Spark plug
Spark Plug: 1 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode,
Electrode Gap [mm]: 0,9,
Spanner Size: 16 mm,
Thread Length [mm]: 19,
Spark Position [mm]: 3,
Thread Size: M 14 x 1,25,
Tightening Torque [Nm]: 28,
Number of pins: 1,
Manufacturer part number: 686S0002,
Manufacturer: RIDEX,
EAN number: 4059191451333
Availability in stock:
RIDEX Oil filter
Filter type: Filter Insert,
Outer Diameter [mm]: 65,
Height: 104,
Inner Diameter [mm]: 33,
Supplementary Article / Supplementary Info: with gaskets/seals,
Manufacturer part number: 7O0116,
Manufacturer: RIDEX,
EAN number: 4059191353736
Availability in stock:
RIDEX Spark plug
Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector,
Electrode Gap [mm]: 0,8,
Spanner Size: 16 mm,
External Thread [mm]: 12,
Thread Length [mm]: 19,
Spark Position [mm]: 3,
Thread Pitch [mm]: 1,25,
Tightening Torque [Nm]: 23,
Tightening angle [degrees]: 90,
Manufacturer part number: 686S0015,
Manufacturer: RIDEX,
EAN number: 4059191685363
Availability in stock:
RIDEX Pollen filter
Filter type: Particulate Filter,
Length [mm]: 216,
Width [mm]: 200,
Height: 31,
Quantity: 1,
Recommended change interval [km]: 20000,
Manufacturer part number: 424I0141,
Manufacturer: RIDEX,
EAN number: 4059191335756
Availability in stock:
RIDEX Spark plug
Product line: Industrial,
Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat,
Electrode Gap [mm]: 1,
Spanner Size: 16 mm,
Thread Length [mm]: 26,5,
Spark Position [mm]: 5,
Thread Size: M14x1.25,
Connector type: SAE,
Container Type: Carton,
Projection [mm]: 3,4,
Resistor to [kohm]: 9,
Resistor from [kohm]: 3,
Tightening torque from [Nm]: 25,
Manufacturer part number: 686S0051,
Manufacturer: RIDEX,
EAN number: 4059191685646
Availability in stock:
Compatible parts
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 20,
Height: 38,8,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 255,8,
Centering Diameter [mm]: 65,
Number of Holes: 4/5,
Wheel Bolt Bore Diameter [mm]: 13,8,
Bolt Hole Circle Ø [mm]: 100,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
Manufacturer part number: 82B0215,
Manufacturer: RIDEX,
EAN number: 4059191314096
Availability in stock:
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 20,
Height: 40,4,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 257,2,
Centering Diameter [mm]: 59,1,
Number of Holes: 4/8,
Wheel Bolt Bore Diameter [mm]: 13,1,
Bolt Hole Circle Ø [mm]: 98,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
Manufacturer part number: 82B0068,
Manufacturer: RIDEX,
EAN number: 4059191314621
Availability in stock:
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 20,
Height: 40,6,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 240,2,
Centering Diameter [mm]: 59,
Number of Holes: 4/8,
Wheel Bolt Bore Diameter [mm]: 13,2,
Bolt Hole Circle Ø [mm]: 98,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
Manufacturer part number: 82B0406,
Manufacturer: RIDEX,
EAN number: 4059191125319
Availability in stock:
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 28,
Height: 38,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 281,
Centering Diameter [mm]: 73,5,
Number of Holes: 5,
Wheel Bolt Bore Diameter [mm]: 14,4,
Bolt Hole Circle Ø [mm]: 114,3,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
Manufacturer part number: 82B0260,
Manufacturer: RIDEX,
EAN number: 4059191126675
Availability in stock:

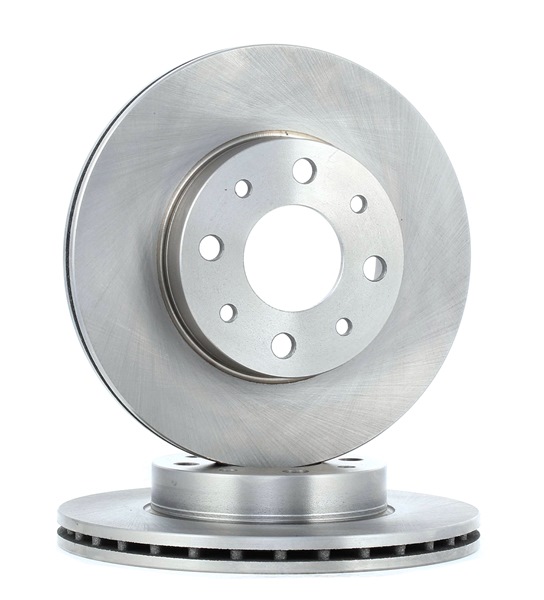

RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 20,
Height: 46,6,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 240,4,
Centering Diameter [mm]: 59,
Number of Holes: 4/8,
Wheel Bolt Bore Diameter [mm]: 13,2,
Bolt Hole Circle Ø [mm]: 98,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
Manufacturer part number: 82B0948,
Manufacturer: RIDEX,
EAN number: 4059191135943
Availability in stock:

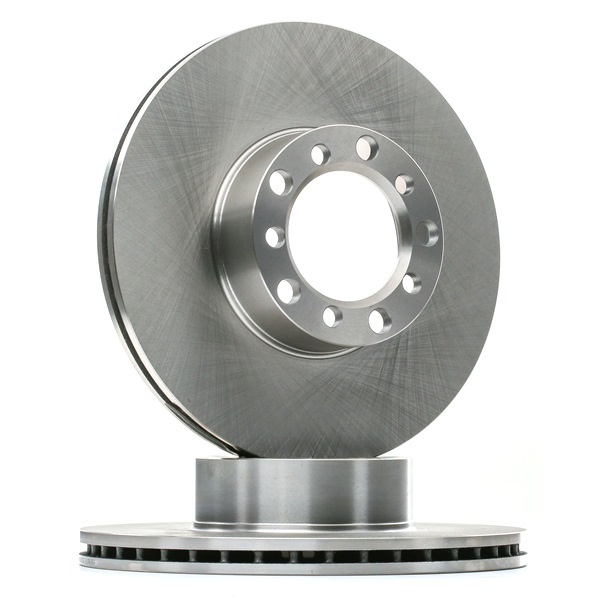

RIDEX Brake disc
