RIDEX

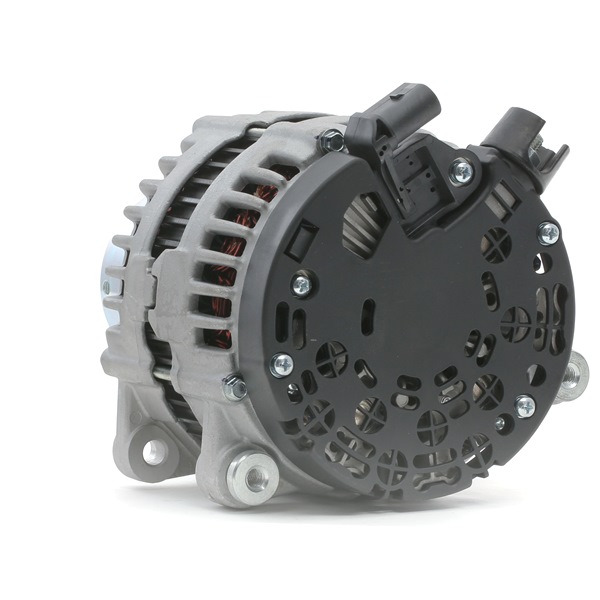

Alternator
Article number: 4G0113
  • Alternator Charging Current [A]: 85
  • Pulleys: with freewheel belt pulley
  • Voltage [V]: 12
  • Rated Voltage [V]: 14
  • Belt Pulley Ø [mm]: 58
  • Number of grooves: 7
  • Vehicle Main Current: for vehicles with 12V main current
  • Rotation Direction: Clockwise rotation
  • Alternator Type: excl. vacuum pump
  • Fastening Type: Single pivoted lever
  • Clamp: B+(M6), IG-S-L-M
  • Bore Diameter 1 [mm]: 10
  • Number of mounting bores: 2
  • Number of threaded holes: 1
  • Distance from belt pulley to alternator [mm]: 37
  • Manufacturer part number: 4G0113
  • Manufacturer: RIDEX
  • EAN number: 4059191633838
  • Weight [kg]: 5.344
  • The actual appearance of the product may differ from the image
  • OEM number
  • Suitable vehicles
  • Top sellers in your country
OEM number
  • TOYOTA 1022112310
  • TOYOTA 1042108220
  • TOYOTA 1042108240
  • TOYOTA 1042108241
  • TOYOTA 1042109010
  • TOYOTA 1042109011
  • TOYOTA 1042109340
  • TOYOTA 270600L020
  • TOYOTA 270600L021
  • TOYOTA 270600L022
  • TOYOTA 270600L030
  • TOYOTA 270600L040
  • TOYOTA 270600L050
  • TOYOTA 270600L060
  • TOYOTA 270600L080
  • TOYOTA 270600L081
  • TOYOTA 270600L090
  • TOYOTA 270600L100
  • TOYOTA 2706030010
  • TOYOTA 2706030020
  • TOYOTA 2706030040
  • TOYOTA 2706030050
  • TOYOTA 2706030120
  • TOYOTA 2706030150
  • TOYOTA 2706030151
  • TOYOTA 2706030152
  • TOYOTA 2706030154
  • TOYOTA 2706006020
  • TOYOTA 270600L02284
  • TOYOTA 270600L060C
  • TOYOTA 2706030030
  • TOYOTA 2706030080
  • TOYOTA 2706030121
  • TOYOTA 2706030122
  • TOYOTA 2706030123
  • TOYOTA 270603012384
  • TOYOTA 2706030153
Suitable vehicles
TOYOTA
  • TOYOTA Aygo (AB10) (Year of Construction 07.2005 - 05.2014, 68 PS, Petrol)
    • TOYOTA Dyna Platform / Chassis (U400-U700, Y200-Y300) (Year of Construction 07.2001 - ..., 88 - 102 PS, Diesel)
      • TOYOTA Fortuner I (AN50,AN60) (Year of Construction 06.2004 - 05.2015, 163 PS, Diesel)
        • TOYOTA Hiace / Commuter Minibus (H200) (Year of Construction 08.2004 - ..., 102 - 128 PS, Diesel)
          • TOYOTA Hiace Minibus (H100, H200) (Year of Construction 08.2001 - 12.2012, 88 - 117 PS, Diesel)
            • TOYOTA Hiace Van (H200) (Year of Construction 06.2004 - ..., 95 - 117 PS, Diesel)
              • TOYOTA Hiace Van (XH10) (Year of Construction 08.2001 - 12.2012, 88 - 117 PS, Diesel)
                • TOYOTA Hilux VI Pickup (Year of Construction 11.2001 - 07.2005, 88 - 102 PS, Diesel)
                  • TOYOTA Hilux VII Pickup (Year of Construction 11.2004 - 09.2015, 88 - 197 PS, Diesel)
                    • TOYOTA Hilux VII Platform / Chassis (Year of Construction 02.2005 - ..., 171 PS, Diesel)
                      • TOYOTA Land Cruiser Prado 120 (J120) (Year of Construction 09.2002 - 12.2010, 125 - 204 PS, Diesel)
                        • TOYOTA Land Cruiser Prado 90 (J90) (Year of Construction 08.2000 - 08.2002, 163 PS, Diesel)
                          Top sellers in your country
                          686S0005 RIDEX Spark plug
                          Electrode Gap [mm]: 0,8, Spanner Size: 16, Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter [mm]: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388
                          Availability in stock:
                          7O0013 RIDEX Oil filter
                          Filter type: Filter Insert, Outer Diameter [mm]: 65,5, Height [mm]: 99, Inner Diameter [mm]: 26, Supplementary Article / Supplementary Info: with gasket/seal, with gaskets/seals, Manufacturer part number: 7O0013, Manufacturer: RIDEX, EAN number: 4059191352807
                          Availability in stock:
                          7O0012 RIDEX Oil filter
                          Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height [mm]: 85, Thread Size: M 20 X 1.5, Inner Diameter 2 [mm]: 55,3, Bypass Valve Opening Pressure [bar]: 1, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Manufacturer part number: 7O0012, Manufacturer: RIDEX, EAN number: 4059191236480
                          Availability in stock:
                          7O0008 RIDEX Oil filter
                          Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height [mm]: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter [mm]: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312
                          Availability in stock:
                          686S0024 RIDEX Spark plug
                          Spanner Size: 16, Product line: Nickel TT, Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Nickel mass electrode, Thread Length [mm]: 26,5, Connector type: Solid SAE, Tightening Torque [Nm]: 22, Diameter [mm]: 14, Weight [g]: 48, Manufacturer part number: 686S0024, Manufacturer: RIDEX, EAN number: 4059191685431
                          Availability in stock:
                          7O0106 RIDEX Oil filter
                          Filter type: Filter Insert, Height [mm]: 115, Inner Diameter 2 [mm]: 31, Diameter [mm]: 64,3, Supplementary Article / Supplementary Info: with gaskets/seals, Inner Diameter 3 [mm]: 31,4, Manufacturer part number: 7O0106, Manufacturer: RIDEX, EAN number: 4059191355792
                          Availability in stock:
                          686S0009 RIDEX Spark plug
                          Electrode Gap [mm]: 1,1, Spanner Size: 16, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0009, Manufacturer: RIDEX, EAN number: 4059191451364
                          Availability in stock:
                          686S0010 RIDEX Spark plug
                          Electrode Gap [mm]: 0,8, Spanner Size: 20,8, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0010, Manufacturer: RIDEX, EAN number: 4059191451371
                          Availability in stock:
                          1390F0059 RIDEX Alternator Freewheel Clutch
                          Supplementary Article / Supplementary Info Info 2: Requires special tools for mounting, Number of grooves: 7, Distance to first groove [mm]: 8, Manufacturer part number: 1390F0059, Manufacturer: RIDEX, EAN number: 4059191729197
                          Availability in stock:
                          4G1092 RIDEX Alternator
                          Alternator Charging Current [A]: 70, Pulleys: with freewheel belt pulley, Voltage [V]: 14, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Plug Type ID: 4 PIN, Vehicle Main Current: for vehicles with 12V main current, Position/Degree: li 25, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), Bore Diameter 1 [mm]: 10, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 60, Manufacturer part number: 4G1092, Manufacturer: RIDEX, EAN number: 4064138078641
                          Availability in stock:
                          1390F0053 RIDEX Alternator Freewheel Clutch
                          Supplementary Article / Supplementary Info Info 2: Requires special tools for mounting, Manufacturer part number: 1390F0053, Manufacturer: RIDEX, EAN number: 4059191729012
                          Availability in stock:
