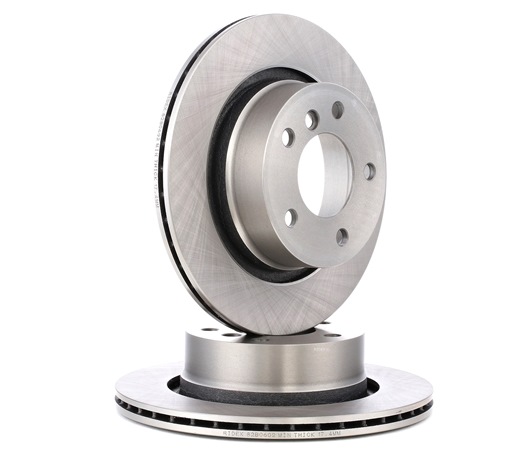

Fitting Position: Front Axle, Brake Disc Type: Vented, Surface: Coated, Height [mm]: 36.7, Brake Disc Thickness [mm]: 22, Outer Diameter [mm]: 255.7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15.6, Bolt Hole Circle Ø [mm]: 100, Minimum thickness [mm]: 19,0, Inner Diameter [mm]: 133, Machining: High-carbon, Bore Diameter [mm]: 15,6, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Surface: Coated, Height [mm]: 51.3, Brake Disc Thickness [mm]: 9.9, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Hole Arrangement/Number: 5/10, Wheel Bolt Bore Diameter [mm]: 15.1, Bolt Hole Circle Ø [mm]: 112, Inner Diameter [mm]: 140, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Fitting Position: Rear Axle, Brake Disc Type: solid, Material: Grey Cast Iron, Surface: Coated, Height [mm]: 39.7, Brake Disc Thickness [mm]: 8.8, Outer Diameter [mm]: 232, Centering Diameter [mm]: 65, Number of Holes: 5/6, Hole Arrangement/Number: 05/06, Wheel Bolt Bore Diameter [mm]: 16, Bolt Hole Circle Ø [mm]: 100, Minimum thickness [mm]: 7, Inner Diameter [mm]: 124.8, Bore Diameter [mm]: 16, usable for vehicles to construction year: 2016/11, Drilled: no, KBA Number (Germany): A1, Manufacturer part number: 82B0003, Manufacturer: RIDEX, EAN number: 4059191312597

Fitting Position: Front Axle, Brake Disc Type: Vented, Surface: Coated, Height [mm]: 41, Brake Disc Thickness [mm]: 20.8, Outer Diameter [mm]: 259, Centering Diameter [mm]: 61, Number of Holes: 4/6, Hole Arrangement/Number: 04/06, 4/6, Wheel Bolt Bore Diameter [mm]: 13.4, Bolt Hole Circle Ø [mm]: 100, Minimum thickness [mm]: 17,7, Inner Diameter [mm]: 131.5, Hub Diameter [mm]: 132, Supplementary Article / Supplementary Info Info 2: without wheel bearing, without wheel hub, without wheel studs, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0016, Manufacturer: RIDEX, EAN number: 4059191313297

Fitting Position: Front Axle, Diameter [mm]: 237,8, Brake Disc Type: Vented, Surface: Coated, Height [mm]: 41, Brake Disc Thickness [mm]: 20, Outer Diameter [mm]: 237,8, Centering Diameter [mm]: 61, Hole Arrangement/Number: 4/6, Wheel Bolt Bore Diameter [mm]: 12,5, Minimum thickness [mm]: 17,7, Inner Diameter [mm]: 130, Tightening Torque [Nm]: 85, Quantity Unit: Piece, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, Manufacturer part number: 82B0042, Manufacturer: RIDEX, EAN number: 4059191315222

Quantity Unit: Axle Set, Fitting Position: Rear Axle, Wear Warning Contact: not prepared for wear warning indicator, Supplementary Article / Supplementary Info: with accessories, with spring, Thickness [mm]: 17,2, Height [mm]: 53, Width [mm]: 87, WVA Number: 23554, Supplementary Article / Supplementary Info Info 2: with anti-squeak plate, with brake caliper screws, for brake disc diameter [mm]: 249, Observe mounting information: , Manufacturer part number: 402B0029, Manufacturer: RIDEX, EAN number: 4059191313075

Electrode Gap [mm]: 0,9, Spanner Size: 16, Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Manufacturer part number: 686S0003, Manufacturer: RIDEX, EAN number: 4059191451357

Filter type: Filter Insert, Height [mm]: 115, Inner Diameter 2 [mm]: 31, Diameter [mm]: 64,3, Supplementary Article / Supplementary Info: with gaskets/seals, Inner Diameter 3 [mm]: 31,4, Manufacturer part number: 7O0106, Manufacturer: RIDEX, EAN number: 4059191355792

Fitting Position: Front Axle, Brake Disc Type: Vented, Surface: Oiled, Height [mm]: 44,5, Brake Disc Thickness [mm]: 26, Outer Diameter [mm]: 274, Centering Diameter [mm]: 87, Hole Arrangement/Number: 5/5, Bolt Hole Circle Ø [mm]: 108, Minimum thickness [mm]: 24, Inner Diameter [mm]: 132,0, Tightening Torque [Nm]: 100, Brake Type: Disc Brake, Bore Diameter [mm]: 10,5, Supplementary Article / Supplementary Info Info 2: without bolts/screws, without wheel hub, Drilled: no, Manufacturer part number: 82B1130, Manufacturer: RIDEX, EAN number: 4059191265985

Fitting Position: Front Axle, Diameter [mm]: 237,8, Brake Disc Type: Vented, Surface: Coated, Height [mm]: 41, Brake Disc Thickness [mm]: 20, Outer Diameter [mm]: 238, Centering Diameter [mm]: 61, Number of Holes: 4, Minimum thickness [mm]: 17.7, Tightening Torque [Nm]: 85, Quantity Unit: Piece, Supplementary Article / Supplementary Info Info 2: with bolts/screws, Drilled: no, Manufacturer part number: 82B0042P, Manufacturer: RIDEX PLUS, EAN number: 4067448706624
