123B0116
Brake drum
- Outer brake drum diameter [mm]: 262
- Inner brake drum diameter [mm]: 220
- Inner brake drum height [mm]: 53,5, 54
- Hole Arrangement/Number: 05/07, 7/5
- Bolt Hole Circle Ø [mm]: 139,7
- Total brake drum height [mm]: 64
- max. brake drum reboring dimension [mm]: 222
- Supplementary Article / Supplementary Info Info 2: without wheel bearing, without wheel hub, without wheel studs
- Centering Diameter [mm]: 108,2
- Outer Diameter [mm]: 261,5
- Wheel Bolt Bore Diameter [mm]: 12,7
- Manufacturer part number: 123B0116
- Manufacturer: RIDEX
- EAN number: 4059191692774
- Weight [kg]: 6.062
- The actual appearance of the product may differ from the image
Product Highlights
- Efficiency even under emergency braking conditions
- Minimum noise and vibrations during braking
- Long service life even under high loads
- Excellent value for money
- OEM number
- Suitable vehicles
- Features
- Top sellers in your country
- Compatible parts
OEM number
- CHEVROLET 30024672
- SUZUKI 43511065010
- SUZUKI 4351165D10
- SUZUKI 4351167D01
Suitable vehicles
CHEVROLET
-
CHEVROLET Tracker Off-Road (Year of Construction 08.2005 - 10.2008, 128 PS, Petrol)
SUZUKI
-
SUZUKI Grand Vitara I Convertible (GT) (Year of Construction 03.1998 - 07.2003, 94 - 128 PS, Petrol)
-
SUZUKI Grand Vitara I Off-Road (FT, HT) (Year of Construction 03.1998 - 08.2006, 86 - 184 PS, Diesel, Petrol)
-
SUZUKI Grand Vitara II Off-Road (JT, TE, TD) (Year of Construction 04.2005 - ..., 99 - 188 PS, Diesel, Petrol)
Features
Top sellers in your country
RIDEX Brake drum
Fitting Position: Rear Axle,
Inner brake drum diameter [mm]: 180,
Inner brake drum height [mm]: 40,1,
Hole Arrangement/Number: 4/6,
Bolt Hole Circle Ø [mm]: 98,
Total brake drum height [mm]: 54,0,
max. brake drum reboring dimension [mm]: 181,35,
Height: 53,8,
Hub Diameter 1 [mm]: 59,
Bore Diameter [mm]: 13,2,
Manufacturer part number: 123B0038,
Manufacturer: RIDEX,
EAN number: 4059191222032
Availability in stock:
RIDEX Brake drum
Fitting Position: Rear Axle,
Outer brake drum diameter [mm]: 239,9,
Inner brake drum diameter [mm]: 200,
Inner brake drum height [mm]: 50,
Number of Holes: 5,
Hole Arrangement/Number: 5/6,
Bolt Hole Circle Ø [mm]: 100,
Total brake drum height [mm]: 59,1,
Centering Diameter [mm]: 65,
Bore Diameter [mm]: 15,6,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 123B0037,
Manufacturer: RIDEX,
EAN number: 4059191221981
Availability in stock:
RIDEX Brake drum
Fitting Position: Rear Axle,
Drum diameter [mm]: 295,
Outer brake drum diameter [mm]: 344,5,
Inner brake drum height [mm]: 67,
Number of Holes: 6,
Bolt Hole Circle Ø [mm]: 139,7,
Total brake drum height [mm]: 76,1,
max. brake drum reboring dimension [mm]: 297,
Centering Diameter [mm]: 108,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 123B0225,
Manufacturer: RIDEX,
EAN number: 4059191535972
Availability in stock:
RIDEX Oil filter
Filter type: Filter Insert,
Outer Diameter [mm]: 65,5,
Height: 99,
Inner Diameter [mm]: 26,
Supplementary Article / Supplementary Info: with gasket/seal, with gaskets/seals,
Manufacturer part number: 7O0013,
Manufacturer: RIDEX,
EAN number: 4059191352807
Availability in stock:
RIDEX Pollen filter
Filter type: Particulate Filter,
Length [mm]: 287,
Width [mm]: 215,
Height: 57,
Quantity: 1,
Recommended change interval [km]: 20000,
Manufacturer part number: 424I0083,
Manufacturer: RIDEX,
EAN number: 4059191332052
Availability in stock:
RIDEX Glow plug
Length [mm]: 130,
Spanner Size: 10,
Glow Plug Design: Pencil-type Glow Plug, after-glow capable,
Fitting Depth [mm]: 28,
Connector type: PIN,
Tightening torque from [Nm]: 15,
Cone Pitch: 63,
Thread Size 1: M 10 x 1,
Supplementary Article / Supplementary Info Info 2: without pressure sensor,
Manufacturer part number: 243G0006,
Manufacturer: RIDEX,
EAN number: 4059191651467
Availability in stock:
RIDEX Oil filter
Filter type: Spin-on Filter,
Height: 66,5,
Seal Ring Diameter [mm]: 62,0,
Connecting thread: M20x1,5,
Supplementary Article / Supplementary Info Info 2: with one anti-return valve,
Diameter: 65,5,
Valve Type: Overflow Valve,
Net Weight [g]: 210,
Manufacturer part number: 7O0026,
Manufacturer: RIDEX,
EAN number: 4059191236404
Availability in stock:
RIDEX Air filter
Filter type: Air Recirculation Filter,
Shape: rectangular,
Length [mm]: 344,5,
Width [mm]: 135,5,
Height: 70,
Manufacturer part number: 8A0004,
Manufacturer: RIDEX,
EAN number: 4059191328819
Availability in stock:
RIDEX Oil filter
Filter type: Spin-on Filter,
Outer Diameter [mm]: 76,
Height: 79,
Connecting thread: M20x1,5,
Supplementary Article / Supplementary Info Info 2: with one anti-return valve,
Manufacturer part number: 7O0136,
Manufacturer: RIDEX,
EAN number: 4059191353385
Availability in stock:
RIDEX Spark plug
Product line: Nickel TT,
Spark Plug: Nickel Middle Electrode,
Electrode Gap [mm]: 1,3,
Spanner Size: 16 mm,
Thread Length [mm]: 25,
Spark Position [mm]: 3,
Thread Size: M 14 x 1,25,
Number of pins: 1,
Manufacturer part number: 686S0017,
Manufacturer: RIDEX,
EAN number: 4059191685387
Availability in stock:
RIDEX Oil filter
Filter type: Filter Insert,
Outer Diameter [mm]: 55,
Height: 112,
Inner Diameter [mm]: 23,
Supplementary Article / Supplementary Info: with gasket/seal, with gaskets/seals,
Manufacturer part number: 7O0137,
Manufacturer: RIDEX,
EAN number: 4059191354481
Availability in stock:
RIDEX Spark plug
Product line: Nickel,
Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode,
Electrode Gap [mm]: 0,9,
Spanner Size: 16 mm,
Thread Size: M14x1,25,
Thread Size 1: 19,
Tightening Torque [Nm]: 22,
Diameter: 14,
Manufacturer part number: 686S0031,
Manufacturer: RIDEX,
EAN number: 4059191685509
Availability in stock:
Compatible parts
RIDEX Brake drum
Fitting Position: Rear Axle,
Drum diameter [mm]: 220,
Outer brake drum diameter [mm]: 261,5,
Inner brake drum height [mm]: 54,
Hole Arrangement/Number: 05/07,
Bolt Hole Circle Ø [mm]: 139,7,
Total brake drum height [mm]: 63,8,
max. brake drum reboring dimension [mm]: 222,
Supplementary Article / Supplementary Info Info 2: without wheel hub, without wheel studs,
Centering Diameter [mm]: 100,
Bore Diameter [mm]: 12,9,
Manufacturer part number: 123B0097,
Manufacturer: RIDEX,
EAN number: 4059191221516
Availability in stock:

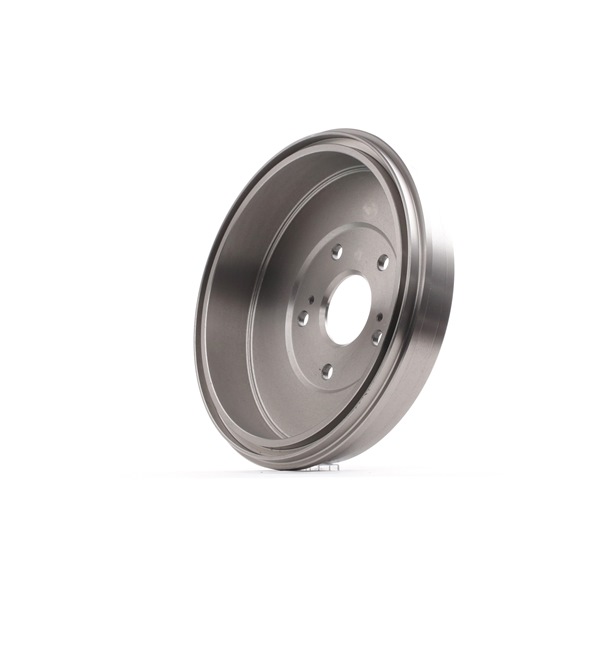

RIDEX Brake drum
