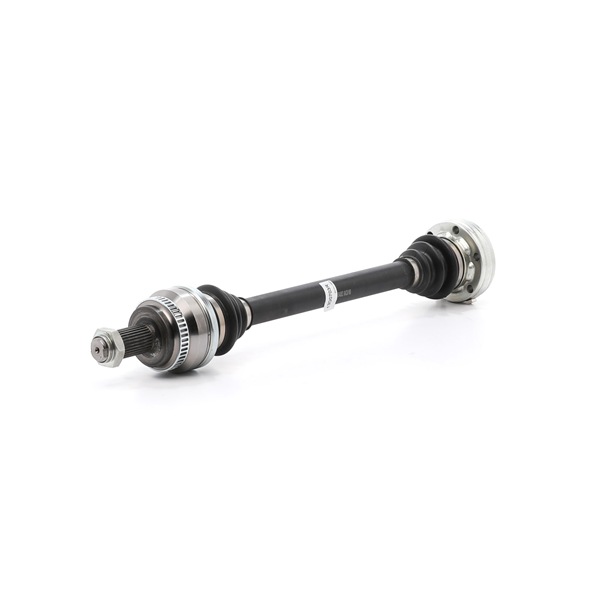

13D0292 Drive shaft

Length [mm]: 924, External Toothing wheel side: 25, Fitting Position: Front Axle Right, External Toothing differential side: 24, Length 2 [mm]: 336, Wheel-sided joint diameter [mm]: 86, Transmission-sided joint diameter [mm]: 82,5, Sealing Ring Diameter [mm]: 58,4, Thread Size: M24x1.5, Supplementary Article / Supplementary Info Info 2: with bearing(s), Manufacturer part number: 13D0234, Manufacturer: RIDEX, EAN number: 4059191722266

Length [mm]: 647, External Toothing wheel side: 30, Fitting Position: Front Axle Left, Front Axle Right, External Toothing differential side: 30, Sealing Ring Diameter [mm]: 70, Thread Size: M28x1.5, Manufacturer part number: 13D0322, Manufacturer: RIDEX, EAN number: 4059191616411

Length [mm]: 136,6, External Toothing wheel side: 26, Fitting Position: Front Axle Right, External Toothing differential side: 37, Sealing Ring Diameter [mm]: 50,00, Thread Size: M8x1.5, Manufacturer part number: 13D0181, Manufacturer: RIDEX, EAN number: 4059191657599

Filter type: Spin-on Filter, Outer Diameter [mm]: 78, Height: 78,5, Thread Size: 3/4\" 16 UNF-2B, Bypass Valve Opening Pressure [bar]: 1, Quantity: 1, Manufacturer part number: 7O0075, Manufacturer: RIDEX, EAN number: 4059191236565

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Tightening angle [degrees]: 90, Manufacturer part number: 686S0015, Manufacturer: RIDEX, EAN number: 4059191685363

Filter type: Air Recirculation Filter, Shape: rectangular, Length [mm]: 344,5, Width [mm]: 135,5, Height: 70, Manufacturer part number: 8A0004, Manufacturer: RIDEX, EAN number: 4059191328819

Spark Plug: 2 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 1,0, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 5, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 2, Tightening angle [degrees]: 90, Manufacturer part number: 686S0007, Manufacturer: RIDEX, EAN number: 4059191685301

Fitting Position: Rear Axle, Width [mm]: 13, Number of Teeth, ABS ring: 48, Inner Diameter [mm]: 79, Manufacturer part number: 2254S0005, Manufacturer: RIDEX, EAN number: 4059191344864

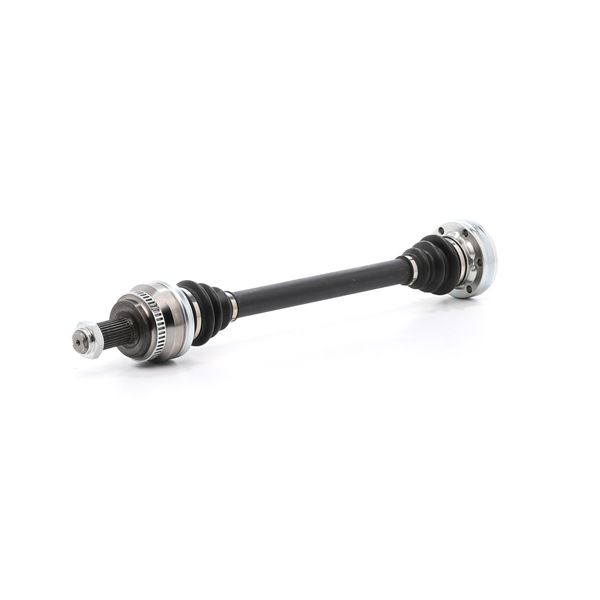

Length [mm]: 626, External Toothing wheel side: 30, Fitting Position: Rear Axle Left, Number of Teeth, ABS ring: 48, Wheel-sided joint diameter [mm]: 94, Transmission-sided joint diameter [mm]: 100, Sealing Ring Diameter [mm]: 68.9, Thread Size: M27X1.5, ABS-Ring Diameter [mm]: 89.7, Bolt Hole Circle Ø [mm]: 86, Number of bores: 6, Bore Diameter [mm]: 10.2, Manufacturer part number: 13D0703R, Manufacturer: RIDEX REMAN, EAN number: 4067448222063

Length [mm]: 626, External Toothing wheel side: 30, Fitting Position: Rear Axle Left, Number of Teeth, ABS ring: 48, Wheel-sided joint diameter [mm]: 94, Transmission-sided joint diameter [mm]: 100, Sealing Ring Diameter [mm]: 68.9, Thread Size: M27X1.5, ABS-Ring Diameter [mm]: 89.7, Bolt Hole Circle Ø [mm]: 86, Number of bores: 6, Bore Diameter [mm]: 10.2, Manufacturer part number: 13D0703, Manufacturer: RIDEX, EAN number: 4064138148528

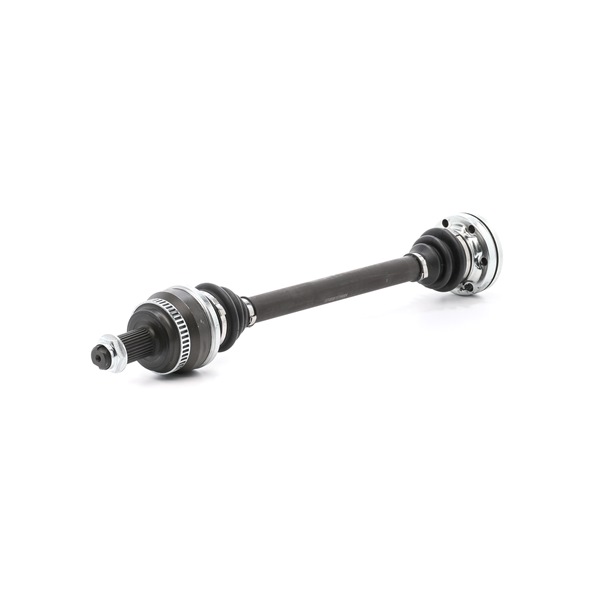

External Toothing wheel side: 30, Fitting Position: Rear Axle Left, Wheel-sided joint diameter [mm]: 83, Transmission-sided joint diameter [mm]: 99, Sealing Ring Diameter [mm]: 69, Thread Size: M27x1,5, Supplementary Article / Supplementary Info Info 2: with nut, Bolt Hole Circle Ø [mm]: 86, Bore Diameter [mm]: 10,4, 10,5, min. length [mm]: 626, Number of mounting bores: 6, Manufacturer part number: 13D0292R, Manufacturer: RIDEX REMAN, EAN number: 4067448195152
