1097S0045 Repair kit, anti-roll bar bush

Fitting Position: Front Axle Left, Front Axle Right, Inner Diameter [mm]: 23, Supplementary Article / Supplementary Info Info 2: with clamps, with rubber mount, Manufacturer part number: 1097S0002, Manufacturer: RIDEX, EAN number: 4064138096126

Fitting Position: Front axle both sides, inner, Length [mm]: 90, Required quantity: 1, Diameter 1 [mm]: 11, Inner Diameter [mm]: 27, Mounting Type: Rubber Mount, Quantity Unit: Set, Supplementary Article / Supplementary Info Info 2: with coupling rod, Base body material: Aluminium, Manufacturer part number: 1097S0038, Manufacturer: RIDEX, EAN number: 4064138379892

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Length [mm]: 130, Spanner Size: 10, Glow Plug Design: Pencil-type Glow Plug, after-glow capable, Fitting Depth [mm]: 28, Connector type: PIN, Tightening torque from [Nm]: 15, Cone Pitch: 63, Thread Size 1: M 10 x 1, Supplementary Article / Supplementary Info Info 2: without pressure sensor, Manufacturer part number: 243G0006, Manufacturer: RIDEX, EAN number: 4059191651467

Filter type: Filter Insert, Outer Diameter [mm]: 57, Inner Diameter [mm]: 21,5, Length [mm]: 106, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0044, Manufacturer: RIDEX, EAN number: 4059191237111

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 35, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0318, Manufacturer: RIDEX, EAN number: 4059191197583

Fitting Position: Front axle both sides, Rod/Strut: Coupling Rod, Length [mm]: 270, Material: Steel, External Thread [mm]: M10 x 1,5, Manufacturer part number: 3229S0011, Manufacturer: RIDEX, EAN number: 4059191323005

Spark Plug: 2 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 1,0, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 5, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 2, Tightening angle [degrees]: 90, Manufacturer part number: 686S0007, Manufacturer: RIDEX, EAN number: 4059191685301

Filter type: Spin-on Filter, Height: 73, Sealing Ring Diameter [mm]: 72, Connecting thread: 3/4\" 16 UNF, Diameter: 76, Manufacturer part number: 7O0032, Manufacturer: RIDEX, EAN number: 4059191236794

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, 78, Height: 76, Thread Size: 3/4-16 UNF-1B, 3/4\"-16F, Bypass Valve Opening Pressure [bar]: 2,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Gasket outside diameter [mm]: 72, Gasket inside diameter [mm]: 63, Manufacturer part number: 7O0048, Manufacturer: RIDEX, EAN number: 4059191245413

Fitting Position: Rear Axle, Rear Axle both sides, Rod/Strut: Coupling Rod, Length 2 [mm]: 100, Inner Diameter [mm]: 8, Weight [g]: 130, Manufacturer part number: 3229S0062, Manufacturer: RIDEX, EAN number: 4059191325177

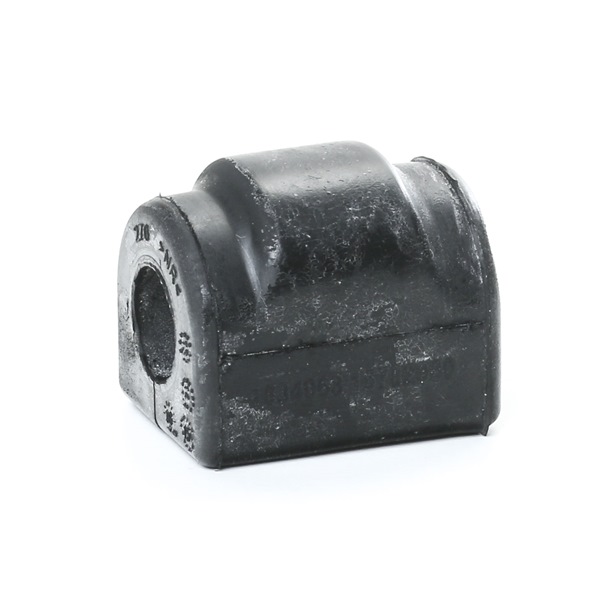

Fitting Position: Rear Axle both sides, inner, Inner Diameter [mm]: 15,0, Outer Diameter [mm]: 34,0, Material: Rubber, Length [mm]: 40, Thickness: 32,0, Width [mm]: 31,0, Manufacturer part number: 1334A0177, Manufacturer: RIDEX, EAN number: 4064138255059
