2S0470R
Starter motor
- Rated Power [kW]: 1,1
- Voltage [V]: 12
- Number of Teeth: 10
- Rotation Direction: Anticlockwise rotation
- Number of mounting bores: 3
- Flange Diameter [mm]: 76,2
- Number of threaded holes: 0
- Clamp: 30,50
- Position/Degree: links
- Pinion Rest Position [mm]: 52,5
- Starter Type: Floating pinion
- Length [mm]: 251
- Bore Diameter [mm]: 9
- Bore Diameter 2 [mm]: 9
- Bore Ø 3 [mm]: 9
- Mounting bore angle measurement [degree]: 60
- Mounting Angle [degrees]: 60
- Manufacturer part number: 2S0470R
- Manufacturer: RIDEX REMAN
- EAN number: 4066423970791
- Weight [kg]: 3.556
- The actual appearance of the product may differ from the image
Product Highlights
- Remanufactured OE parts that meet the vehicle maker’s standards
- Smart alternative to costly new components
- Professionally inspected, cleaned, and refurbished
- Restored to match new parts' performance and durability
- Certified testing and total process transparency
- OEM number
- Suitable vehicles
- Features
- Top sellers in your country
- Compatible parts
OEM number
- VW 028911023A
- VW 02B911023A
- VW 02B911023AX
- VW 02B911023B
- VW 02B911023BX
- VW 02B911023D
- VW 02B911023F
- VW 02B911023L
- VW 02B911023N
Suitable vehicles
VW
-
VW Transporter T4 Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (Year of Construction 09.1990 - 04.2003, 67 - 84 PS, Petrol)
-
VW Transporter T4 Platform / Chassis (70E, 70L, 70M, 7DE, 7DL, 7D) (Year of Construction 07.1990 - 04.2003, 84 PS, Petrol)
-
VW Transporter T4 Van (70A, 70H, 7DA, 7DH) (Year of Construction 07.1990 - 04.2003, 67 - 84 PS, Petrol)
Features
Top sellers in your country
RIDEX Starter motor
Rated Power [kW]: 2,2,
Voltage [V]: 12,
Number of Teeth: 10, 10/11,
Rotation Direction: Clockwise rotation,
Number of mounting bores: 2,
Flange Diameter [mm]: 82, 82,50,
Plug Type ID: B+(M8)/50(M6),
Pinion Rest Position [mm]: 26,
Manufacturer part number: 2S0118,
Manufacturer: RIDEX,
EAN number: 4059191703722
Availability in stock:
RIDEX Starter motor
Rated Power [kW]: 2,2,
Voltage [V]: 12,
Number of Teeth: 10,
Number of mounting bores: 2,
Flange Diameter [mm]: 82,5,
Number of threaded holes: 1,
Clamp: \"30\" M8 B+, \"50\" Plug 157,
Length [mm]: 235,
Manufacturer part number: 2S0153,
Manufacturer: RIDEX,
EAN number: 4059191762965
Availability in stock:
RIDEX Starter motor
Rated Power [kW]: 2,5,
Voltage [V]: 12,
Number of Teeth: 9,
Rotation Direction: Clockwise rotation,
Number of mounting bores: 2,
Flange Diameter [mm]: 95, 95,00,
Pinion Rest Position [mm]: 10,
Assy./disassy. by qualified personnel required!: ,
Manufacturer part number: 2S0055,
Manufacturer: RIDEX,
EAN number: 4059191631919
Availability in stock:
RIDEX Brake pad set
Fitting Position: Rear Axle,
Brake System: TRW / LUCAS / GIRLING,
Wear Warning Contact: not prepared for wear warning indicator,
Supplementary Article / Supplementary Info: with accessories,
Thickness: 17,
Quantity Unit: Axle Set,
Height: 52,9,
Width [mm]: 87,
Manufacturer part number: 402B0029,
Manufacturer: RIDEX,
EAN number: 4059191313075
Availability in stock:
RIDEX Oil filter
Filter type: Spin-on Filter,
Outer Diameter [mm]: 65,
Height: 85,
Thread Size: M 20 X 1.5,
Inner Diameter 2 [mm]: 55,3,
Bypass Valve Opening Pressure [bar]: 1,
Supplementary Article / Supplementary Info Info 2: with one anti-return valve,
Manufacturer part number: 7O0012,
Manufacturer: RIDEX,
EAN number: 4059191236480
Availability in stock:
RIDEX Oil sump plug
Thread Size: M 14,
Spanner Size: 19,
Bolt Head-/Nut Design: External Hexagon,
Supplementary Article / Supplementary Info Info 2: with seal ring,
Thread Pitch [mm]: 1,5,
Manufacturer part number: 593D0002,
Manufacturer: RIDEX,
EAN number: 4059191567263
Availability in stock:
RIDEX High beam bulb
Lamp Type: H7,
Light Design: Halogen,
Rated Power [W]: 55,
Voltage [V]: 12,
Bulb Colour: transparent,
Colour Temperature [K]: 4000,
Socket Type bulb: PX26d,
Luminous Flux [lm]: 1500,
Manufacturer part number: 106B0002,
Manufacturer: RIDEX,
EAN number: 4059191822324
Availability in stock:
RIDEX Spark plug
Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector,
Electrode Gap [mm]: 0,8,
Spanner Size: 16 mm,
External Thread [mm]: 12,
Thread Length [mm]: 19,
Spark Position [mm]: 3,
Thread Pitch [mm]: 1,25,
Tightening Torque [Nm]: 23,
Tightening angle [degrees]: 90,
Manufacturer part number: 686S0015,
Manufacturer: RIDEX,
EAN number: 4059191685363
Availability in stock:
RIDEX Spark plug
Product line: Nickel TT,
Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Nickel mass electrode,
Spanner Size: 16 mm,
Thread Length [mm]: 26,5,
Connector type: Solid SAE,
Tightening Torque [Nm]: 22,
Diameter: 14,
Manufacturer part number: 686S0024,
Manufacturer: RIDEX,
EAN number: 4059191685431
Availability in stock:
RIDEX Oil filter
Filter type: Spin-on Filter,
Height: 66,5,
Seal Ring Diameter [mm]: 62,0,
Connecting thread: M20x1,5,
Supplementary Article / Supplementary Info Info 2: with one anti-return valve,
Diameter: 65,5,
Valve Type: Overflow Valve,
Net Weight [g]: 210,
Manufacturer part number: 7O0026,
Manufacturer: RIDEX,
EAN number: 4059191236404
Availability in stock:
RIDEX Spark plug
Electrode Gap [mm]: 0,8,
Spanner Size: 20,8,
External Thread [mm]: 14,
Thread Length [mm]: 19,
Spark Position [mm]: 3,
Thread Pitch [mm]: 1,25,
Tightening Torque [Nm]: 28,
Number of pins: 1,
Tightening angle [degrees]: 90,
Manufacturer part number: 686S0010,
Manufacturer: RIDEX,
EAN number: 4059191451371
Availability in stock:
RIDEX Pollen filter
Filter type: Particulate Filter,
Length [mm]: 216,
Width [mm]: 200,
Height: 31,
Quantity: 1,
Recommended change interval [km]: 20000,
Manufacturer part number: 424I0141,
Manufacturer: RIDEX,
EAN number: 4059191335756
Availability in stock:
Compatible parts
RIDEX Starter motor
Rated Power [kW]: 1,8,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Clamp: 30 (M8),
Pinion Rest Position [mm]: 52,
Manufacturer part number: 2S0009,
Manufacturer: RIDEX,
EAN number: 4059191633708
Availability in stock:
RIDEX Starter motor
Rated Power [kW]: 2,2,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,
Clamp: 30 (M8),
Manufacturer part number: 2S0023,
Manufacturer: RIDEX,
EAN number: 4059191670109
Availability in stock:

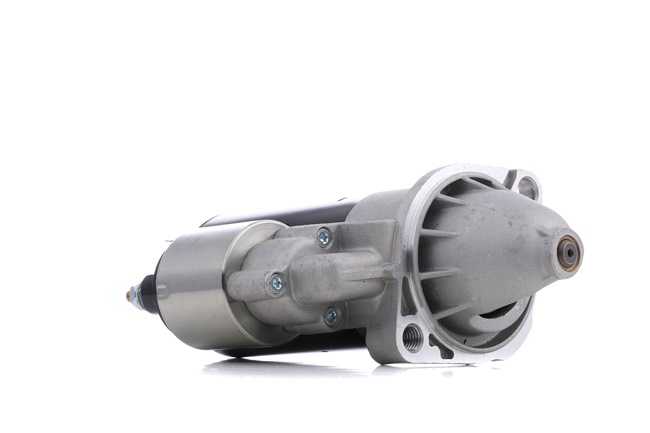

RIDEX Starter motor
Rated Power [kW]: 1,8,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,2,
Clamp: 30, 50,
Position/Degree: links,
Pinion Rest Position [mm]: 52,5,
Starter Type: Non self-supporting,
Length [mm]: 289,
Bore Diameter [mm]: 9,
Manufacturer part number: 2S0261,
Manufacturer: RIDEX,
EAN number: 4059191705382
Availability in stock:
RIDEX Starter motor
Rated Power [kW]: 2,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,2,
Clamp: 30,50,
Position/Degree: links,
Pinion Rest Position [mm]: 52,5,
Starter Type: Floating pinion,
Length [mm]: 234,
Bore Diameter [mm]: 9,
Bore Diameter 2 [mm]: 9,
Bore Ø 3 [mm]: 9,
Manufacturer part number: 2S0427,
Manufacturer: RIDEX,
EAN number: 4059191809745
Availability in stock:
RIDEX REMAN Starter motor
Rated Power [kW]: 1,8,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Clamp: 30 (M8),
Pinion Rest Position [mm]: 52,
Manufacturer part number: 2S0009R,
Manufacturer: RIDEX REMAN,
EAN number: 4059191972074
Availability in stock:
RIDEX REMAN Starter motor
Rated Power [kW]: 2,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,2,
Clamp: 30,50,
Position/Degree: links,
Pinion Rest Position [mm]: 52,5,
Starter Type: Floating pinion,
Length [mm]: 234,
Bore Diameter [mm]: 9,
Bore Diameter 2 [mm]: 9,
Bore Ø 3 [mm]: 9,
Manufacturer part number: 2S0427R,
Manufacturer: RIDEX REMAN,
EAN number: 4059191972524
Out of stock
RIDEX REMAN Starter motor
Rated Power [kW]: 2,2,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,
Clamp: 30 (M8),
Manufacturer part number: 2S0023R,
Manufacturer: RIDEX REMAN,
EAN number: 4059191972548
Availability in stock:

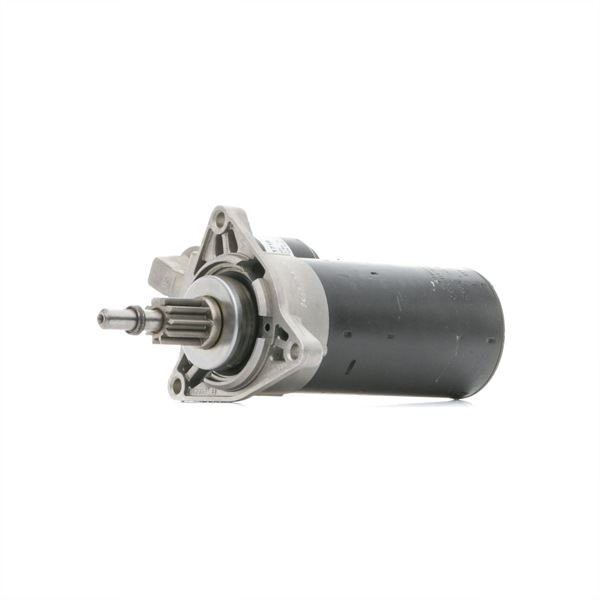

RIDEX REMAN Starter motor
Rated Power [kW]: 1,8,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,2,
Clamp: 30, 50,
Position/Degree: links,
Pinion Rest Position [mm]: 52,5,
Starter Type: Non self-supporting,
Length [mm]: 289,
Bore Diameter [mm]: 9,
Manufacturer part number: 2S0261R,
Manufacturer: RIDEX REMAN,
EAN number: 4059191972791
Availability in stock:
RIDEX Starter motor
Rated Power [kW]: 1,1,
Voltage [V]: 12,
Number of Teeth: 10,
Rotation Direction: Anticlockwise rotation,
Number of mounting bores: 3,
Flange Diameter [mm]: 76,2,
Number of threaded holes: 0,
Clamp: 30,50,
Position/Degree: links,
Pinion Rest Position [mm]: 52,5,
Starter Type: Floating pinion,
Length [mm]: 251,
Bore Diameter [mm]: 9,
Bore Diameter 2 [mm]: 9,
Bore Ø 3 [mm]: 9,
Mounting bore angle measurement [degree]: 60,
Mounting Angle [degrees]: 60,
Manufacturer part number: 2S0470,
Manufacturer: RIDEX,
EAN number: 4064138133098
Availability in stock:

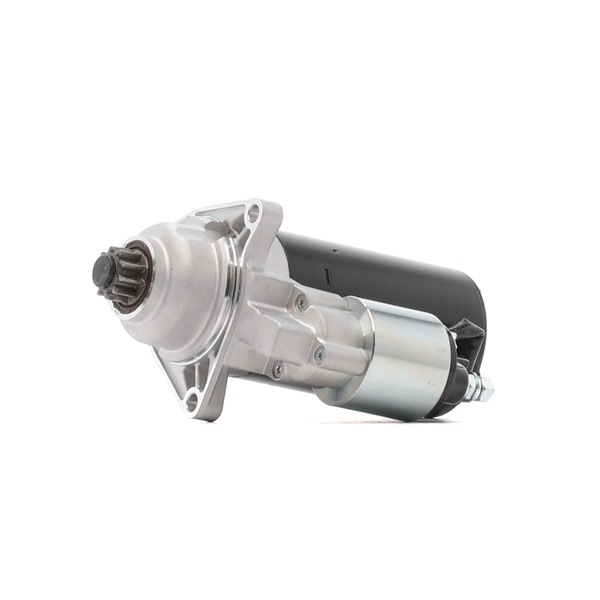

RIDEX Starter motor
