82B0156
Brake disc
- Fitting Position: Rear Axle
- Brake Disc Type: Vented
- Brake Disc Thickness: 21,9
- Height: 44,4
- Material: Cast Iron
- Surface: Uncoated
- Outer Diameter [mm]: 294
- Centering Diameter [mm]: 76
- Number of Holes: 5/6
- Wheel Bolt Bore Diameter [mm]: 16,7
- Bolt Hole Circle Ø [mm]: 120
- Minimum thickness [mm]: 19,5
- Inner Diameter [mm]: 154,6
- Processing: Untreated
- Supplementary Article / Supplementary Info Info 2: without bolts/screws
- Drilled: no
- usable for vehicles to construction year: 2016/11
- Manufacturer part number: 82B0156
- Manufacturer: RIDEX
- EAN number: 4059191314959
- Weight [kg]: 7.023
- The actual appearance of the product may differ from the image
Product Highlights
- Standard brake discs packed in oiled wrapping
- Material: GG20 cast iron
- Consistent high quality
- Easy installation
- Perfect compatibility with RIDEX brake system components
- OEM number
- Suitable vehicles
- Features
- Top sellers in your country
- Compatible parts
OEM number
- AUDI 7E0615601D
- AUDI 7H0615601B
- SEAT 7E0615601D
- SEAT 7H0615601B
- SKODA 7E0615601D
- SKODA 7H0615601B
- VW 7E0615601D
- VW 7H0615601B
Suitable vehicles
VW
-
VW California T5 Minibus (7EC, 7EF, 7EG, 7HF) (Year of Construction 05.2007 - 08.2015, 84 - 204 PS, Diesel, Petrol)
-
VW California T6 Minibus (SGC, SGG, SHC) (Year of Construction 04.2015 - 08.2024, 84 - 204 PS, Diesel, Petrol)
-
VW Multivan T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) (Year of Construction 04.2003 - 08.2015, 84 - 235 PS, Diesel, Petrol)
-
VW Multivan T6 (SGF, SGM, SGN) (Year of Construction 04.2015 - 08.2024, 84 - 204 PS, Diesel, Petrol)
-
VW Transporter T5 Minibus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) (Year of Construction 04.2003 - 08.2015, 84 - 235 PS, Diesel, Petrol, Petrol/Natural Gas (CNG))
-
VW Transporter T5 Platform / Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD) (Year of Construction 04.2003 - 08.2015, 84 - 235 PS, Diesel, Petrol, Petrol/Natural Gas (CNG))
-
VW Transporter T5 Van (7HA, 7HH, 7EA, 7EH) (Year of Construction 04.2003 - 08.2015, 84 - 235 PS, Diesel, Petrol, Petrol/Natural Gas (CNG))
-
VW Transporter T6 Minibus (SGB, SGG, SGJ) (Year of Construction 04.2015 - ..., 84 - 204 PS, Diesel, Electric, Petrol)
-
VW Transporter T6 Platform / Chassis (SFD, SFE, SFL, SFZ) (Year of Construction 04.2015 - 08.2024, 84 - 204 PS, Diesel, Petrol)
-
VW Transporter T6 Van (SGA, SGH) (Year of Construction 04.2015 - ..., 84 - 204 PS, Diesel, Electric, Petrol)
Features
Top sellers in your country
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 22,
Height: 37,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 256,
Centering Diameter [mm]: 65,
Number of Holes: 5/6,
Wheel Bolt Bore Diameter [mm]: 15,7,
Bolt Hole Circle Ø [mm]: 100,
Minimum thickness [mm]: 19,
Inner Diameter [mm]: 133,4,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 82B0004,
Manufacturer: RIDEX,
EAN number: 4059191312610
Availability in stock:
RIDEX Brake disc
Fitting Position: Front Axle,
Brake Disc Type: Vented,
Brake Disc Thickness: 25,
Height: 49,9,
Surface: Coated,
Outer Diameter [mm]: 312,
Centering Diameter [mm]: 65,
Number of Holes: 5/10,
Bolt Hole Circle Ø [mm]: 112,
Minimum thickness [mm]: 22,
Inner Diameter [mm]: 146,
Processing: High-carbon,
No. of holes 2: 9,
Bore Diameter [mm]: 15,4,
Supplementary Article / Supplementary Info Info 2: with bolts/screws,
Drilled: no,
Manufacturer part number: 82B0031,
Manufacturer: RIDEX,
EAN number: 4059191312726
Availability in stock:
RIDEX Brake disc
Fitting Position: Rear Axle,
Brake Disc Type: solid,
Brake Disc Thickness: 10,
Height: 51,4,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 253,
Centering Diameter [mm]: 65,
Number of Holes: 10/5,
Wheel Bolt Bore Diameter [mm]: 15,2,
Bolt Hole Circle Ø [mm]: 112,
Minimum thickness [mm]: 8,
Inner Diameter [mm]: 140,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
usable for vehicles to construction year: 2016/11,
Manufacturer part number: 82B0018,
Manufacturer: RIDEX,
EAN number: 4059191312641
Availability in stock:
RIDEX Oil filter
Filter type: Filter Insert,
Outer Diameter [mm]: 65,5,
Height: 99,
Inner Diameter [mm]: 26,
Supplementary Article / Supplementary Info: with gasket/seal, with gaskets/seals,
Manufacturer part number: 7O0013,
Manufacturer: RIDEX,
EAN number: 4059191352807
Availability in stock:
RIDEX Spark plug
Product line: Iridium TT,
Spark Plug: 1 - Earthed Electrode, Iridium Middle Electrode,
Spanner Size: 16 mm,
Thread Size 1: 19,
Tightening Torque [Nm]: 22,
Diameter: 14,
Manufacturer part number: 686S0034,
Manufacturer: RIDEX,
EAN number: 4059191685523
Availability in stock:
RIDEX Spark plug
Electrode Gap [mm]: 1,1,
Spanner Size: 16 mm,
External Thread [mm]: 14,
Thread Length [mm]: 19,
Spark Position [mm]: 3,
Thread Pitch [mm]: 1,25,
Tightening Torque [Nm]: 28,
Number of pins: 1,
Tightening angle [degrees]: 90,
Manufacturer part number: 686S0009,
Manufacturer: RIDEX,
EAN number: 4059191451364
Availability in stock:
RIDEX Oil filter
Filter type: Spin-on Filter,
Height: 66,5,
Seal Ring Diameter [mm]: 62,0,
Connecting thread: M20x1,5,
Supplementary Article / Supplementary Info Info 2: with one anti-return valve,
Diameter: 65,5,
Valve Type: Overflow Valve,
Net Weight [g]: 210,
Manufacturer part number: 7O0026,
Manufacturer: RIDEX,
EAN number: 4059191236404
Availability in stock:
RIDEX Spark plug
Spark Plug: 3 - Earthed Electrode, Fixed SAE connector, Interference Suppression 1 kOhm, Nickel Middle Electrode, with gasket seat,
Electrode Gap [mm]: 0,9,
Spanner Size: 16 mm,
Thread Length [mm]: 19,0,
Spark Position [mm]: 5,2,
Thread Size: M14 x 1,25,
Number of pins: 3,
Manufacturer part number: 686S0036,
Manufacturer: RIDEX,
EAN number: 4059191685547
Availability in stock:
RIDEX Spark plug
Spark Plug: 1 - Earthed Electrode,
Electrode Gap [mm]: 1,1,
Spanner Size: 14,
Thread Length [mm]: 26,5,
Thread Size: M12 x 1.25,
Tightening Torque [Nm]: 22,
Manufacturer part number: 686S0086,
Manufacturer: RIDEX,
EAN number: 4059191980918
Availability in stock:
RIDEX Brake pad wear sensor
Fitting Position: Front Axle, Rear Axle,
Warning Contact Length [mm]: 97,5,
Brake Type: Disc Brake,
Manufacturer part number: 407W0002,
Manufacturer: RIDEX,
EAN number: 4059191227556
Availability in stock:
RIDEX Spark plug
Electrode Gap [mm]: 0,9,
Spanner Size: 16 mm,
External Thread [mm]: 12,
Thread Length [mm]: 26,5,
Spark Position [mm]: 4,
Thread Pitch [mm]: 1,25,
Tightening Torque [Nm]: 23,
Number of pins: 1,
Tightening angle [degrees]: 90,
Manufacturer part number: 686S0122,
Manufacturer: RIDEX,
EAN number: 4064138039567
Availability in stock:
RIDEX Glow plug
Thread Size: M10x1.25,
Length 1 [mm]: 81,4,
Length 2 [mm]: 18,5,
Voltage [V]: 11,
Spanner Size: 12,
Manufacturer part number: 243G0039,
Manufacturer: RIDEX,
EAN number: 4059191694556
Availability in stock:
Compatible parts
RIDEX Brake disc
Fitting Position: Rear Axle,
Brake Disc Type: solid,
Brake Disc Thickness: 10,
Height: 55,8,
Material: Cast Iron,
Surface: Uncoated,
Outer Diameter [mm]: 280,
Centering Diameter [mm]: 55,
Number of Holes: 5/8,
Wheel Bolt Bore Diameter [mm]: 14,8,
Bolt Hole Circle Ø [mm]: 100,
Processing: Untreated,
Supplementary Article / Supplementary Info Info 2: without bolts/screws,
Drilled: no,
Manufacturer part number: 82B0116,
Manufacturer: RIDEX,
EAN number: 4059191315536
Availability in stock:

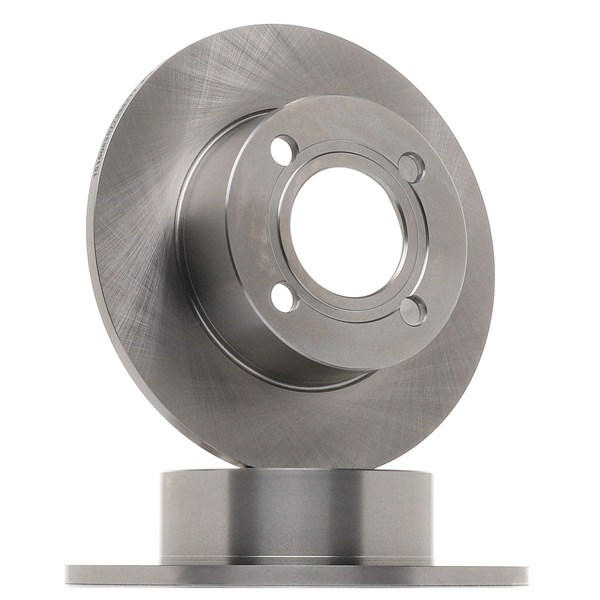

RIDEX Brake disc
