82B0431

Fitment not confirmed

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Processing: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

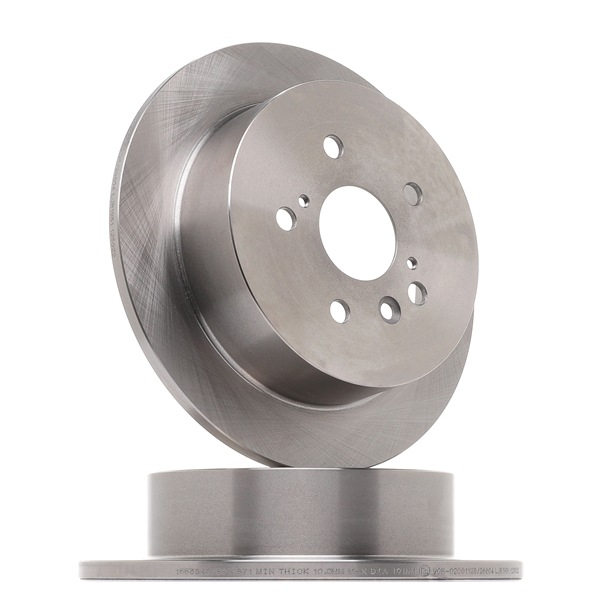

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 12, Height: 68,5, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 291, Centering Diameter [mm]: 62, Number of Holes: 5/8, Wheel Bolt Bore Diameter [mm]: 14,4, Bolt Hole Circle Ø [mm]: 114,3, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, Manufacturer part number: 82B0412, Manufacturer: RIDEX, EAN number: 4059191127221

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 11, Height: 82,2, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 274, Centering Diameter [mm]: 52,3, Number of Holes: 4, Wheel Bolt Bore Diameter [mm]: M12x1.5, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: with ABS sensor ring, with wheel bearing, without bolts/screws, Drilled: no, Manufacturer part number: 82B1685, Manufacturer: RIDEX, EAN number: 4059191591541

Spark Plug: 1 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Manufacturer part number: 686S0002, Manufacturer: RIDEX, EAN number: 4059191451333

Thread Size: M 14, Spanner Size: 19, Bolt Head-/Nut Design: External Hexagon, Supplementary Article / Supplementary Info Info 2: with seal ring, Thread Pitch [mm]: 1,5, Manufacturer part number: 593D0002, Manufacturer: RIDEX, EAN number: 4059191567263

Spark Plug: 2 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 1,0, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 5, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 2, Tightening angle [degrees]: 90, Manufacturer part number: 686S0007, Manufacturer: RIDEX, EAN number: 4059191685301

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 31, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0141, Manufacturer: RIDEX, EAN number: 4059191335756

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 10,9, Height: 82,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 274, Centering Diameter [mm]: 52,3, Number of Holes: 5, Wheel Bolt Bore Diameter [mm]: M12x1.5, Bolt Hole Circle Ø [mm]: 108, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: with wheel hub, Drilled: no, Manufacturer part number: 82B0235, Manufacturer: RIDEX, EAN number: 4059191125982

Brake Disc Type: solid, Brake Disc Thickness: 11, Height: 83,9, Outer Diameter [mm]: 274, Centering Diameter [mm]: 52,3, Hole Arrangement/Number: 05/05, Wheel Bolt Bore Diameter [mm]: 12, Bolt Hole Circle Ø [mm]: 108, Minimum thickness [mm]: 9,5, Inner Diameter [mm]: 143, Stub Axle Diameter [mm]: 30, Supplementary Article / Supplementary Info: with axle nut, Supplementary Article / Supplementary Info Info 2: with integrated magnetic sensor ring, with wheel bearing, with wheel hub, without wheel studs, Drilled: no, Manufacturer part number: 82B0431P, Manufacturer: RIDEX PLUS, EAN number: 4069197954448
