82B0203

Incompatible with VIN

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Machining: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Thread Size: M 14, Spanner Size: 19, Bolt Head-/Nut Design: Male Hex, Supplementary Article / Supplementary Info Info 2: with seal ring, Thread Pitch [mm]: 1,5, Manufacturer part number: 593D0002, Manufacturer: RIDEX, EAN number: 4059191567263

Filter type: Air Recirculation Filter, Shape: rectangular, Length [mm]: 344,5, Width [mm]: 135,5, Height: 70, Manufacturer part number: 8A0004, Manufacturer: RIDEX, EAN number: 4059191328819

Filter type: Filter Insert, Height: 143, Height 1 [mm]: 97, Diameter: 71,5, Diameter 1 [mm]: 15,2, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0002, Manufacturer: RIDEX, EAN number: 4059191236152

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Tightening angle [degrees]: 90, Manufacturer part number: 686S0015, Manufacturer: RIDEX, EAN number: 4059191685363

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, Height: 79, Connecting thread: M20x1,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Manufacturer part number: 7O0136, Manufacturer: RIDEX, EAN number: 4059191353385

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 31, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0141, Manufacturer: RIDEX, EAN number: 4059191335756

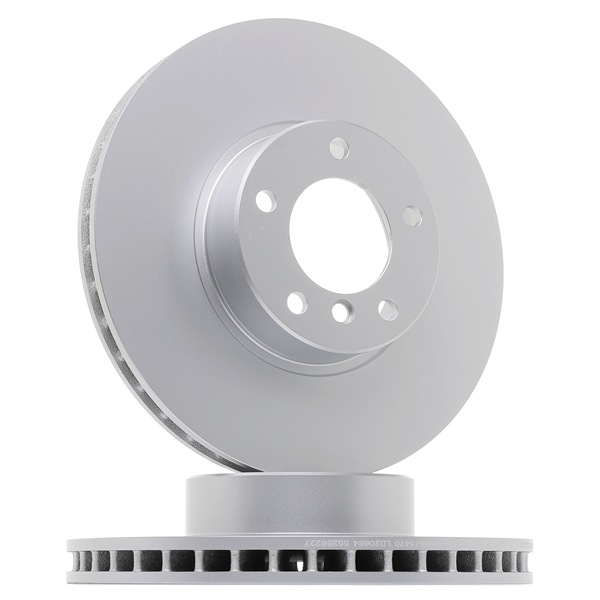

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 30, Height: 73,8, Material: Grey Cast Iron, Surface: Coated, Outer Diameter [mm]: 324, Centering Diameter [mm]: 79, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 14,7, Bolt Hole Circle Ø [mm]: 120, Machining: High-carbon, Supplementary Article / Supplementary Info Info 2: with bolts/screws, Drilled: no, Manufacturer part number: 82B0203P, Manufacturer: RIDEX PLUS, EAN number: 4066423805352
