82B0741

Fitment unknown

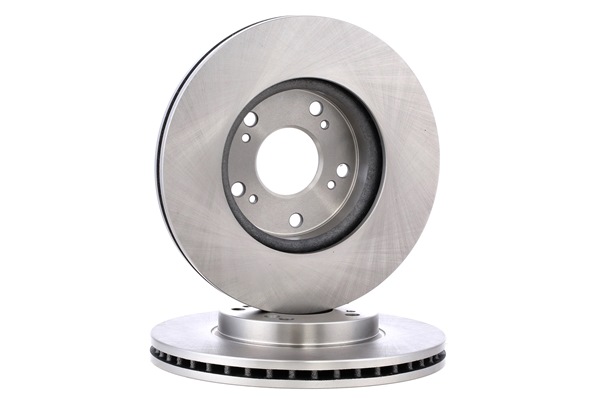

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Machining: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Thread Size: M14 x 1,25, Assy./disassy. by qualified personnel required!: , Manufacturer part number: 686S0003, Manufacturer: RIDEX, EAN number: 4059191451357

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Filter type: Filter Insert, Outer Diameter [mm]: 57, Inner Diameter [mm]: 21,5, Length [mm]: 106, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0044, Manufacturer: RIDEX, EAN number: 4059191237111

Filter type: Particulate Filter, Length [mm]: 194, Width [mm]: 214, Height: 29, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0021, Manufacturer: RIDEX, EAN number: 4059191333707

Filter type: Spin-on Filter, Outer Diameter [mm]: 78, Height: 78,5, Thread Size: 3/4\" 16 UNF-2B, Bypass Valve Opening Pressure [bar]: 1, Quantity: 1, Manufacturer part number: 7O0075, Manufacturer: RIDEX, EAN number: 4059191236565

Spark Plug: 2 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 1,0, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 5, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 2, Tightening angle [degrees]: 90, Manufacturer part number: 686S0007, Manufacturer: RIDEX, EAN number: 4059191685301

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 31, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0141, Manufacturer: RIDEX, EAN number: 4059191335756

Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 4, Thread Size: M 12 x 1,25, Connector type: Napf, Tightening Torque [Nm]: 23, Number of pins: 1, Manufacturer part number: 686S0083, Manufacturer: RIDEX, EAN number: 4059191980543
