82B0508

Fitment unknown

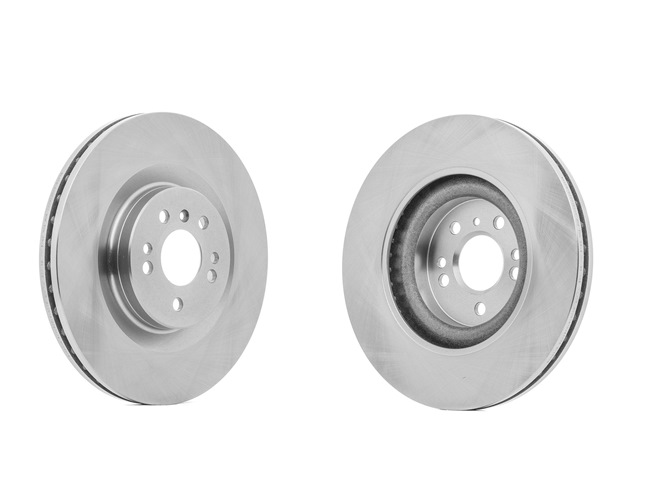

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Machining: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Filter type: Air Recirculation Filter, Shape: rectangular, Length [mm]: 344,5, Width [mm]: 135,5, Height: 70, Manufacturer part number: 8A0004, Manufacturer: RIDEX, EAN number: 4059191328819

Filter type: Filter Insert, Outer Diameter [mm]: 65, Height: 69, Inner Diameter [mm]: 24,2, Supplementary Article / Supplementary Info Info 2: with seal ring, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0017, Manufacturer: RIDEX, EAN number: 4059191356003

Spark Plug: 1 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Manufacturer part number: 686S0002, Manufacturer: RIDEX, EAN number: 4059191451333

Length [mm]: 130, Spanner Size: 10, Glow Plug Design: Pencil-type Glow Plug, after-glow capable, Fitting Depth [mm]: 28, Connector type: PIN, Tightening torque from [Nm]: 15, Cone Pitch: 63, Thread Size 1: M 10 x 1, Supplementary Article / Supplementary Info Info 2: without pressure sensor, Manufacturer part number: 243G0006, Manufacturer: RIDEX, EAN number: 4059191651467

Filter type: Spin-on Filter, Height: 66,5, Sealing Ring Diameter [mm]: 62,0, Connecting thread: M20x1,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,5, Valve type: Overflow Valve, Net Weight [g]: 210, Manufacturer part number: 7O0026, Manufacturer: RIDEX, EAN number: 4059191236404

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 1, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M14x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3,4, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 25, Manufacturer part number: 686S0051, Manufacturer: RIDEX, EAN number: 4059191685646

Spark Plug: 1 - Earthed Electrode, Electrode Gap [mm]: 1,1, Spanner Size: 14, Thread Length [mm]: 26,5, Thread Size: M12 x 1.25, Tightening Torque [Nm]: 22, Manufacturer part number: 686S0086, Manufacturer: RIDEX, EAN number: 4059191980918

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 14, Height: 63,7, Material: Cast Iron, Surface: Coated, Outer Diameter [mm]: 330,2, Centering Diameter [mm]: 67, Number of Holes: 5/7, Wheel Bolt Bore Diameter [mm]: 15,3, Bolt Hole Circle Ø [mm]: 112, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, Manufacturer part number: 82B0508P, Manufacturer: RIDEX PLUS, EAN number: 4066423805574
