82B0470

Fitment not confirmed

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Processing: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Fitting Position: Rear Axle, Brake System: TRW / LUCAS / GIRLING, Wear Warning Contact: not prepared for wear warning indicator, Supplementary Article / Supplementary Info: with accessories, with spring, Thickness: 17, Quantity Unit: Axle Set, Height: 52,9, Width [mm]: 87, for brake disc diameter [mm]: 249, Manufacturer part number: 402B0029, Manufacturer: RIDEX, EAN number: 4059191313075

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Product line: Nickel TT, Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Nickel mass electrode, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Connector type: Solid SAE, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 48, Manufacturer part number: 686S0024, Manufacturer: RIDEX, EAN number: 4059191685431

Length [mm]: 130, Spanner Size: 10, Glow Plug Design: Pencil-type Glow Plug, after-glow capable, Fitting Depth [mm]: 28, Connector type: PIN, Tightening torque from [Nm]: 15, Cone Pitch: 63, Thread Size 1: M 10 x 1, Supplementary Article / Supplementary Info Info 2: without pressure sensor, Manufacturer part number: 243G0006, Manufacturer: RIDEX, EAN number: 4059191651467

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 35, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0318, Manufacturer: RIDEX, EAN number: 4059191197583

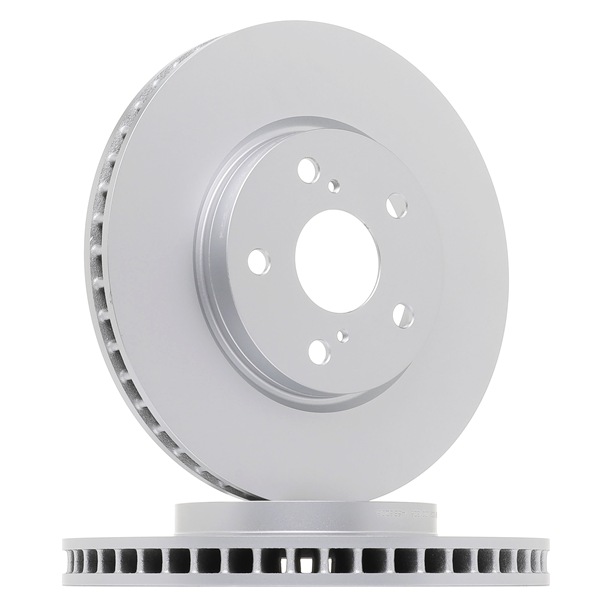

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 28, Height: 49,3, Material: Grey Cast Iron, Surface: Coated, Outer Diameter [mm]: 296, Centering Diameter [mm]: 62, Number of Holes: 5/7, Wheel Bolt Bore Diameter [mm]: 14,5, Bolt Hole Circle Ø [mm]: 114,3, Processing: High-carbon, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, Manufacturer part number: 82B0470P, Manufacturer: RIDEX PLUS, EAN number: 4067448710911
