82B0528

Fitment unknown

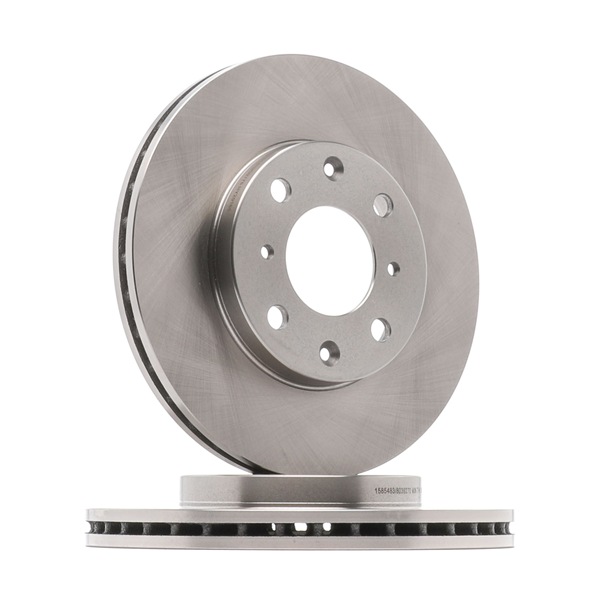

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Machining: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Thread Size: M14 x 1,25, Assy./disassy. by qualified personnel required!: , Manufacturer part number: 686S0003, Manufacturer: RIDEX, EAN number: 4059191451357

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Fitting Position: Front Axle Left, Front Axle Right, Front axle both sides, Rod/Strut: Suspension Rod, Length [mm]: 335, Material: Steel, Thread Size 1: M12x1,5, Thread Size 2: M12x1,5, Pipe Diameter [mm]: 10, Supplementary Article / Supplementary Info Info 2: with fastening material, Manufacturer part number: 3229S0007, Manufacturer: RIDEX, EAN number: 4059191322695

Lamp Type: H7, Light Design: Halogen, Rated Power [W]: 55, Voltage [V]: 12, Bulb Colour: transparent, Colour Temperature [K]: 4000, Socket Type bulb: PX26d, Luminous Flux [lm]: 1500, Manufacturer part number: 106B0002, Manufacturer: RIDEX, EAN number: 4059191822324

Filter type: Particulate Filter, Length [mm]: 287, Width [mm]: 215, Height: 57, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0083, Manufacturer: RIDEX, EAN number: 4059191332052

Filter type: Particulate Filter, Length [mm]: 242, Width [mm]: 204, Height: 36, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0237, Manufacturer: RIDEX, EAN number: 4059191329489

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Connector Type SAE, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M14x1,25, Projection [mm]: 1,5, Resistor to [kOhm]: 15, Resistor from [kOhm]: 6, Tightening torque from [Nm]: 20, Manufacturer part number: 686S0040, Manufacturer: RIDEX, EAN number: 4059191650637

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464
