82B0857

Fitment not confirmed

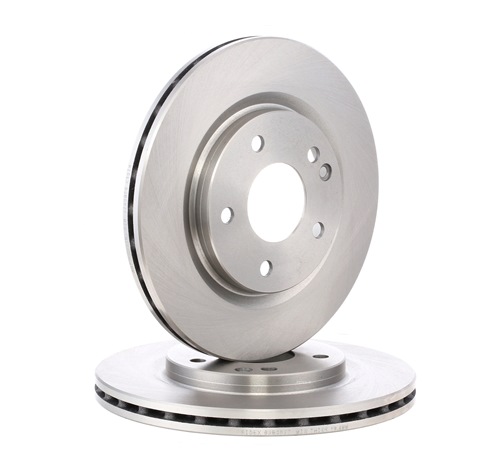

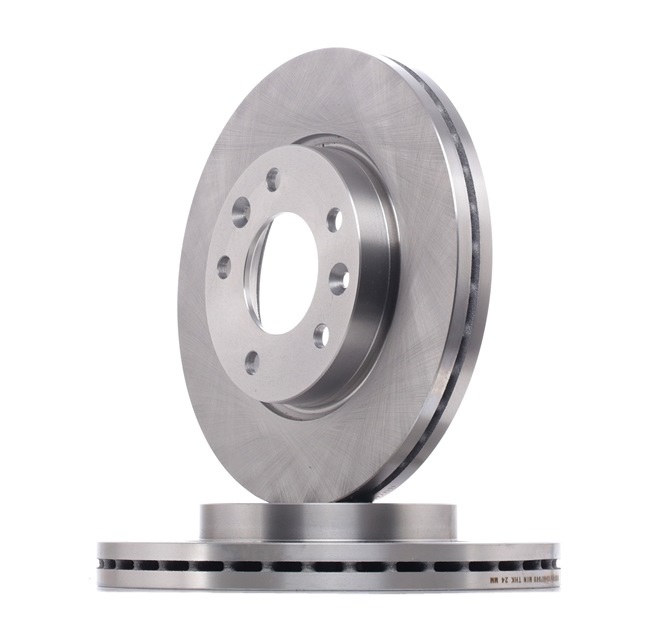

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Processing: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Filter type: Filter Insert, Height: 143, Height 1 [mm]: 97, Diameter: 71,5, Diameter 1 [mm]: 15,2, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0002, Manufacturer: RIDEX, EAN number: 4059191236152

Fitting Position: Rear Axle, Brake System: TRW / LUCAS / GIRLING, Wear Warning Contact: not prepared for wear warning indicator, Supplementary Article / Supplementary Info: with accessories, with spring, Thickness: 17, Quantity Unit: Axle Set, Height: 52,9, Width [mm]: 87, for brake disc diameter [mm]: 249, Manufacturer part number: 402B0029, Manufacturer: RIDEX, EAN number: 4059191313075

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Seal Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve Type: Overflow Valve, Net Weight [g]: 209, Seal Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Fitting Position: Front Axle Left, Front Axle Right, Front axle both sides, Rod/Strut: Suspension Rod, Length [mm]: 335, Material: Steel, Thread Size 1: M12x1,5, Thread Size 2: M12x1,5, Pipe Diameter [mm]: 10, Supplementary Article / Supplementary Info Info 2: with fastening material, Manufacturer part number: 3229S0007, Manufacturer: RIDEX, EAN number: 4059191322695

Product line: Iridium TT, Spark Plug: 1 - Earthed Electrode, Iridium Middle Electrode, Spanner Size: 16 mm, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Manufacturer part number: 686S0034, Manufacturer: RIDEX, EAN number: 4059191685523

Product line: Nickel, Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Size: M14x1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Manufacturer part number: 686S0031, Manufacturer: RIDEX, EAN number: 4059191685509

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 35, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0318, Manufacturer: RIDEX, EAN number: 4059191197583

Spark Plug: 3 - Earthed Electrode, Fixed SAE connector, Interference Suppression 1 kOhm, Nickel Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19,0, Spark Position [mm]: 5,2, Thread Size: M14 x 1,25, Number of pins: 3, Manufacturer part number: 686S0036, Manufacturer: RIDEX, EAN number: 4059191685547

Thread Size: M10x1.25, Length 1 [mm]: 81,4, Length 2 [mm]: 18,5, Voltage [V]: 11, Spanner Size: 12, Manufacturer part number: 243G0039, Manufacturer: RIDEX, EAN number: 4059191694556
