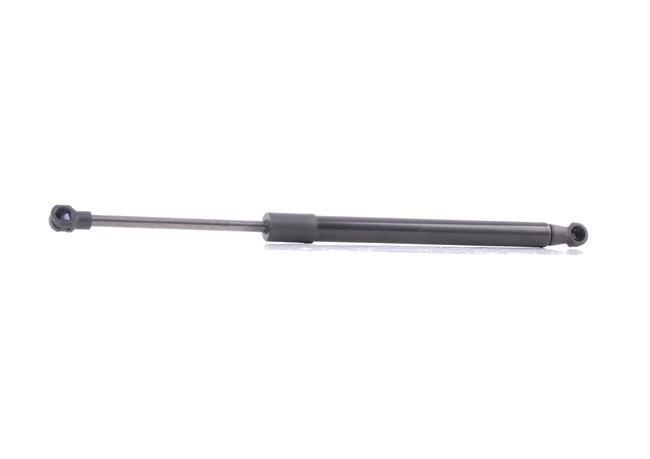

219G0366 Tailgate strut

Fitting Position: Vehicle Tailgate, Extention Force [N]: 535, Length [mm]: 450, Housing Diameter [mm]: 22, Piston Rod Diameter [mm]: 10, Stroke [mm]: 168, Material: Steel, Manufacturer part number: 219G0023, Manufacturer: RIDEX, EAN number: 4059191190621

Housing length [mm]: 269,5, Fitting Position: both sides, Extention Force [N]: 500, Length [mm]: 500, Housing Diameter [mm]: 18, Piston Rod Diameter [mm]: 8, Stroke [mm]: 205, Quantity: 1, Mounting points diameter [mm]: 17,8, Material: Steel, Manufacturer part number: 219G0004, Manufacturer: RIDEX, EAN number: 4059191190423

Fitting Position: Vehicle Tailgate, Extention Force [N]: 600, Length [mm]: 443, Housing Diameter [mm]: 18, Piston Rod Diameter [mm]: 8, Stroke [mm]: 177, Material: Steel, Manufacturer part number: 219G0020, Manufacturer: RIDEX, EAN number: 4059191190591

Thread Size: M 14, Spanner Size: 19, Bolt Head-/Nut Design: Male Hex, Supplementary Article / Supplementary Info Info 2: with seal ring, Thread Pitch [mm]: 1,5, Manufacturer part number: 593D0002, Manufacturer: RIDEX, EAN number: 4059191567263

Filter type: Filter Insert, Outer Diameter [mm]: 65,5, Height: 99, Inner Diameter [mm]: 26, Supplementary Article / Supplementary Info: with gasket/seal, with gaskets/seals, Manufacturer part number: 7O0013, Manufacturer: RIDEX, EAN number: 4059191352807

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Connector Type SAE, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M14x1,25, Projection [mm]: 1,5, Resistor to [kOhm]: 15, Resistor from [kOhm]: 6, Tightening torque from [Nm]: 20, Manufacturer part number: 686S0040, Manufacturer: RIDEX, EAN number: 4059191650637

Filter type: Particulate Filter, Length [mm]: 225, Width [mm]: 202, Height: 17, Required quantity: 1, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0056, Manufacturer: RIDEX, EAN number: 4059191334940

Filter type: Particulate Filter, Length [mm]: 242, Width [mm]: 204, Height: 36, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0237, Manufacturer: RIDEX, EAN number: 4059191329489

Spark Plug: 2 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 1,0, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 5, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 2, Tightening angle [degrees]: 90, Manufacturer part number: 686S0007, Manufacturer: RIDEX, EAN number: 4059191685301

Extention Force [N]: 280, Length [mm]: 366, Standpipe Diameter [mm]: 8, Stroke [mm]: 117, Cylinder Bore [mm]: 18,5, Material: Steel, Manufacturer part number: 219G0997, Manufacturer: RIDEX, EAN number: 4064138670951

Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 26,5, Spark Position [mm]: 4, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0122, Manufacturer: RIDEX, EAN number: 4064138039567
