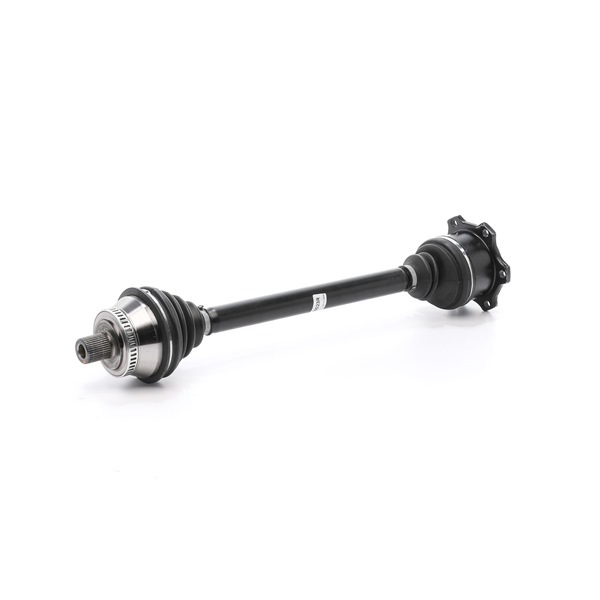

13D0023 Drive shaft

RIDEX
  • Fitting Position: Front Axle Left
  • Length [mm]: 611
  • External Toothing wheel side: 38
  • Number of Teeth, ABS ring: 45
  • Wheel-sided joint diameter [mm]: 98
  • Transmission-sided joint diameter [mm]: 130
  • Sealing Ring Diameter [mm]: 59,5
  • Thread Size: M16x1.5
  • Bolt Hole Circle Ø [mm]: 114
  • Number of bores: 6
  • Bore Diameter [mm]: 10,5
  • Manufacturer part number: 13D0023
  • Manufacturer: RIDEX
  • EAN number: 4059191233663
  • Weight [kg]: 8.05
  • The actual appearance of the product may differ from the image
  • OEM number
  • Suitable vehicles
  • Top sellers in your country
OEM number
  • AUDI 3B0407271N
  • AUDI 8D0407453EX
  • AUDI 8D0407453EV
  • AUDI 8D0407451LX
  • AUDI 3B0407271NX
  • AUDI 8D0407451CX
  • AUDI 8D0407451CV
  • AUDI 8D0407271EL
  • AUDI 8D0407271AJ
  • AUDI 8D0407271EF
  • AUDI 8D0407271EC
  • AUDI 8D0407271DT
  • AUDI 8D0407271BB
  • SEAT 8D0407271BB
  • SEAT 8D0407453EX
  • SEAT 3B0407271N
  • SEAT 8D0407453EV
  • SEAT 8D0407271DT
  • SEAT 8D0407451LX
  • SEAT 8D0407451CX
  • SEAT 3B0407271NX
  • SEAT 8D0407271EC
  • SEAT 8D0407451CV
  • SEAT 8D0407271EL
  • SEAT 8D0407271AJ
  • SEAT 8D0407271EF
  • SKODA 8D0407271EF
  • SKODA 8D0407271EL
  • SKODA 3B0407271NX
  • SKODA 8D0407271EC
  • SKODA 8D0407451CV
  • SKODA 8D0407271AJ
  • SKODA 8D0407451CX
  • SKODA 8D0407271DT
  • SKODA 8D0407451LX
  • SKODA 3B0407271N
  • SKODA 8D0407453EV
  • SKODA 8D0407271BB
  • SKODA 8D0407453EX
  • VW 8D0407271EF
  • VW 3B0407271NX
  • VW 8D0407271EC
  • VW 8D0407271EL
  • VW 8D0407451CV
  • VW 8D0407271DT
  • VW 8D0407451CX
  • VW 3B0407271N
  • VW 8D0407451LX
  • VW 8D0407271AJ
  • VW 8D0407453EV
  • VW 8D0407271BB
  • VW 8D0407453EX
  • VW 8D0407453HX
  • VW 8D0407453JX
  • VW JZW407449QX
  • VW JZW407449SX
Suitable vehicles
AUDI
  • AUDI A4 B5 Avant (8D5) (Year of Construction 02.1996 - 09.2001, 150 - 193 PS, Diesel, Petrol)
    • AUDI A4 B5 Saloon (8D2) (Year of Construction 01.1995 - 08.2001, 150 - 193 PS, Diesel, Petrol)
      SKODA
      • SKODA Superb I Saloon (3U4) (Year of Construction 12.2001 - 03.2008, 130 - 193 PS, Diesel, Petrol)
        VW
        • VW Passat B5 Estate (3B5) (Year of Construction 06.1997 - 11.2000, 110 - 193 PS, Diesel, Petrol)
          • VW Passat B5 GP Estate (3BG, 3B6) (Year of Construction 10.2000 - 08.2005, 130 - 275 PS, Diesel, Petrol)
            • VW Passat B5 GP Saloon (3BG, 3B3) (Year of Construction 10.2000 - 05.2005, 130 - 275 PS, Diesel, Petrol)
              • VW Passat B5 Saloon (3B2) (Year of Construction 08.1996 - 11.2000, 110 - 193 PS, Diesel, Petrol)
