82B1136

Fitment not confirmed

Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Processing: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

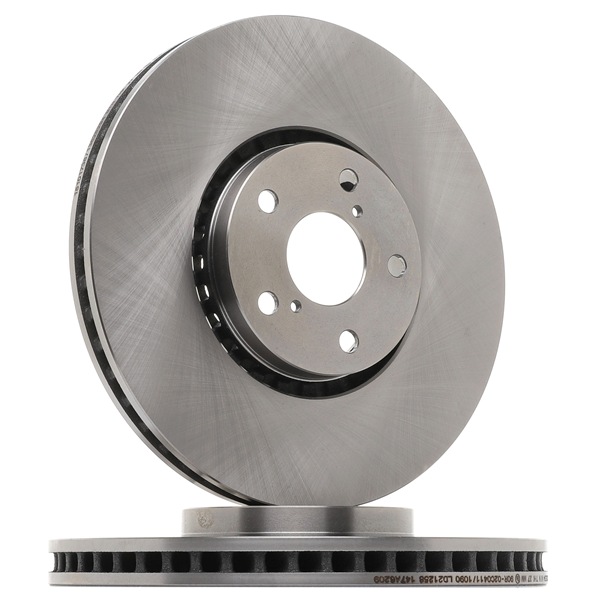

Fitting Position: Front Axle Left, Brake Disc Type: Vented, Brake Disc Thickness: 30, Height: 50,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 334, Centering Diameter [mm]: 62, Number of Holes: 5/7, Wheel Bolt Bore Diameter [mm]: 14,6, Bolt Hole Circle Ø [mm]: 114,3, Processing: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B1283, Manufacturer: RIDEX, EAN number: 4059191651412

Fitting Position: Front Axle, Rear Axle, Warning Contact Length [mm]: 97,5, Brake Type: Disc Brake, Manufacturer part number: 407W0002, Manufacturer: RIDEX, EAN number: 4059191227556

Product line: Nickel TT, Spark Plug: Nickel Middle Electrode, Electrode Gap [mm]: 1,3, Spanner Size: 16 mm, Thread Length [mm]: 25, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Number of pins: 1, Manufacturer part number: 686S0017, Manufacturer: RIDEX, EAN number: 4059191685387

Spark Plug: 3 - Earthed Electrode, Fixed SAE connector, Interference Suppression 1 kOhm, Nickel Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19,0, Spark Position [mm]: 5,2, Thread Size: M14 x 1,25, Number of pins: 3, Manufacturer part number: 686S0036, Manufacturer: RIDEX, EAN number: 4059191685547

Filter type: Filter Insert, Outer Diameter [mm]: 57, Inner Diameter [mm]: 21,5, Length [mm]: 106, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0044, Manufacturer: RIDEX, EAN number: 4059191237111

Filter type: Particulate Filter, Length [mm]: 240, Width [mm]: 189, Height: 22, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0239, Manufacturer: RIDEX, EAN number: 4059191198429

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464

Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 26,5, Spark Position [mm]: 4, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0122, Manufacturer: RIDEX, EAN number: 4064138039567
