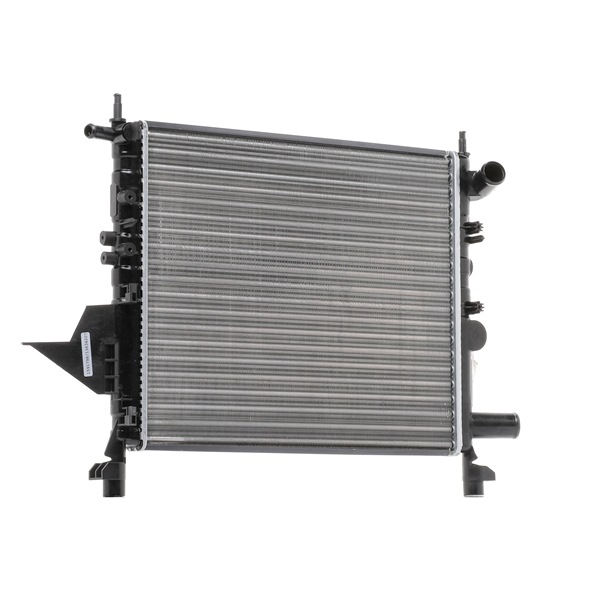

470R0186 Engine radiator

Cooling fins material: Aluminium, Radiator type: Mechanically jointed cooling fins, Water Tank Material (radiator): Plastic, Transmission Type: Manual-/optional automatic transmission, Material: Aluminium, Plastic, Outlet Ø [mm]: 32,0, Inlet Ø [mm]: 32,0, Heating/Cooling: for vehicles without oil cooler, Supplementary Article / Supplementary Info: with accessories, Core Depth [mm]: 26, Core Width [mm]: 538, Core Length [mm]: 380, Manufacturer part number: 470R0003, Manufacturer: RIDEX, EAN number: 4059191363971

Water Tank Material (radiator): Plastic, Transmission Type: Automatic Transmission, Material: Aluminium, Vehicle Equipment: for vehicles with/without air conditioning, Supplementary Article / Supplementary Info: with accessories, Core Depth [mm]: 32, Core Width [mm]: 416, Core Length [mm]: 450, Manufacturer part number: 470R0475, Manufacturer: RIDEX, EAN number: 4059191757473

Radiator type: Brazed cooling fins, Material: Aluminium, Connection Diameter 1 [mm]: 32, Core Depth [mm]: 24, Core Width [mm]: 399, Core Length [mm]: 647, Inlet Diameter 1 [mm]: 32, Manufacturer part number: 470R0002, Manufacturer: RIDEX, EAN number: 4059191363896

Electrode Gap [mm]: 0,8, Spanner Size: 20,8, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0010, Manufacturer: RIDEX, EAN number: 4059191451371

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Fitting Position: Front Axle, Rear Axle, Warning Contact Length [mm]: 97,5, Brake Type: Disc Brake, Manufacturer part number: 407W0002, Manufacturer: RIDEX, EAN number: 4059191227556

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Tightening angle [degrees]: 90, Manufacturer part number: 686S0015, Manufacturer: RIDEX, EAN number: 4059191685363

Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 26,5, Spark Position [mm]: 4, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0122, Manufacturer: RIDEX, EAN number: 4064138039567

Filter type: High efficiency air filter (HEPA), Particulate Filter, Length [mm]: 217,5, Width [mm]: 201, Height: 31, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0141, Manufacturer: RIDEX, EAN number: 4059191335756

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 1, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M14x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3,4, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 25, Manufacturer part number: 686S0051, Manufacturer: RIDEX, EAN number: 4059191685646

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Connector Type SAE, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M14x1,25, Projection [mm]: 1,5, Resistor to [kOhm]: 15, Resistor from [kOhm]: 6, Tightening torque from [Nm]: 20, Manufacturer part number: 686S0040, Manufacturer: RIDEX, EAN number: 4059191650637

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464
