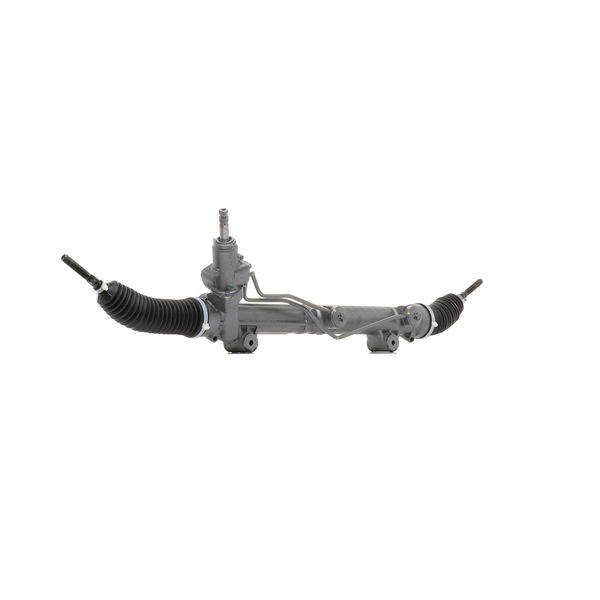

RIDEX 286S0049 Steering rack

Steering Gear Type: Rack and Pinion Steering Gear, Total Length [mm]: 1110, Axle Joint Thread Size: M14, Left-/right-hand drive vehicles: for left-hand drive vehicles, Colour: grey, Operating Mode: Electric, Manufacturer part number: 286S0066, Manufacturer: RIDEX, EAN number: 4059191382040

Distance of mounting bores [mm]: 317, Steering Gear Type: Rack and Pinion Steering Gear, Supplementary Article / Supplementary Info Info 2: with steering bellows, Total Length [mm]: 1070, Axle Joint Thread Size: M14x1,5, Input shaft height [mm]: 140, Vehicle configuration line / variant: Electric assist, Left-/right-hand drive vehicles: for left-hand drive vehicles, Operating Mode: Electric, Manufacturer part number: 286S0009, Manufacturer: RIDEX, EAN number: 4059191382491

Pressure Line Connection Thread Size: M18x1,5, Backflow Connector Thread Size: M16x1,5, Mounting points diameter [mm]: 10,9, Input shaft height [mm]: 51, Input Shaft Diameter [mm]: 19, Left-/right-hand drive vehicles: for left-hand drive vehicles, Stroke [mm]: 174, Overall Length [mm]: 1506, Operating Mode: Hydraulic, Manufacturer part number: 286S0058, Manufacturer: RIDEX, EAN number: 4059191671649

Thread Size: M 14, Spanner Size: 19, Bolt Head-/Nut Design: Male Hex, Supplementary Article / Supplementary Info Info 2: with seal ring, Thread Pitch [mm]: 1,5, Manufacturer part number: 593D0002, Manufacturer: RIDEX, EAN number: 4059191567263

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Thread Size: M14x1,25, Tightening torque from [Nm]: 20, Spark Plug Head: Fixed SAE connector, Manufacturer part number: 686S0025, Manufacturer: RIDEX, EAN number: 4059191685448

Fitting Position: Front Axle Left, Lower, Cone Size [mm]: 15,4, Thread Size 1: MM12X1,5R, Manufacturer part number: 2462S0043, Manufacturer: RIDEX, EAN number: 4059191326464

Product line: Iridium TT, Spark Plug: 1 - Earthed Electrode, Iridium Middle Electrode, Spanner Size: 16 mm, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Manufacturer part number: 686S0034, Manufacturer: RIDEX, EAN number: 4059191685523

Spark Plug: 1 - Earthed Electrode, Fixed SAE connector, Nickel Middle Electrode, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Manufacturer part number: 686S0002, Manufacturer: RIDEX, EAN number: 4059191451333

Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 26,5, Spark Position [mm]: 4, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0122, Manufacturer: RIDEX, EAN number: 4064138039567

Product line: Nickel, Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Size: M14x1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Manufacturer part number: 686S0031, Manufacturer: RIDEX, EAN number: 4059191685509
