286S0030

Fitment unknown

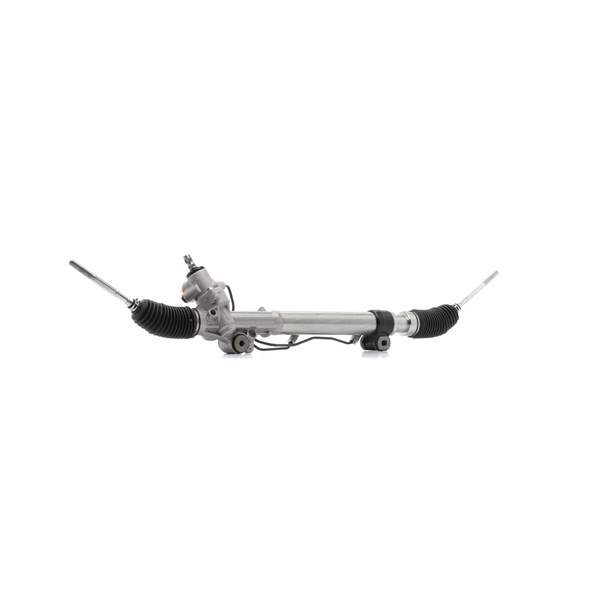

Steering rack

Steering Gear Type: Rack and Pinion Steering Gear, Total Length [mm]: 1110, Axle Joint Thread Size: M14, Left-/right-hand drive vehicles: for left-hand drive vehicles, Colour: grey, Operating Mode: Electric, Manufacturer part number: 286S0066, Manufacturer: RIDEX, EAN number: 4059191382040

Distance of mounting bores [mm]: 317, Steering Gear Type: Rack and Pinion Steering Gear, Supplementary Article / Supplementary Info Info 2: with steering bellows, Total Length [mm]: 1070, Axle Joint Thread Size: M14x1,5, Input shaft height [mm]: 140, Left-/right-hand drive vehicles: for left-hand drive vehicles, Operating Mode: Electric, Manufacturer part number: 286S0009, Manufacturer: RIDEX, EAN number: 4059191382491

Pressure Line Connection Thread Size: M18x1,5, Backflow Connector Thread Size: M16x1,5, Mounting points diameter [mm]: 10,9, Input shaft height [mm]: 51, Input Shaft Diameter [mm]: 19, Left-/right-hand drive vehicles: for left-hand drive vehicles, Stroke [mm]: 174, Overall Length [mm]: 1506, Operating Mode: Hydraulic, Manufacturer part number: 286S0058, Manufacturer: RIDEX, EAN number: 4059191671649

Fitting Position: Rear Axle, Brake System: TRW / LUCAS / GIRLING, Wear Warning Contact: not prepared for wear warning indicator, Supplementary Article / Supplementary Info: with accessories, with spring, Thickness: 17, Quantity Unit: Axle Set, Height: 52,9, Width [mm]: 87, for brake disc diameter [mm]: 249, Manufacturer part number: 402B0029, Manufacturer: RIDEX, EAN number: 4059191313075

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 85, Thread Size: M 20 X 1.5, Inner Diameter 2 [mm]: 55,3, Bypass Valve Opening Pressure [bar]: 1, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Manufacturer part number: 7O0012, Manufacturer: RIDEX, EAN number: 4059191236480

Length [mm]: 130, Spanner Size: 10, Glow Plug Design: Pencil-type Glow Plug, after-glow capable, Fitting Depth [mm]: 28, Connector type: PIN, Tightening torque from [Nm]: 15, Cone Pitch: 63, Thread Size 1: M 10 x 1, Supplementary Article / Supplementary Info Info 2: without pressure sensor, Manufacturer part number: 243G0006, Manufacturer: RIDEX, EAN number: 4059191651467

Fitting Position: Front Axle Left, Front Axle Right, Front axle both sides, Rod/Strut: Suspension Rod, Length [mm]: 335, Material: Steel, Thread Size 1: M12x1,5, Thread Size 2: M12x1,5, Pipe Diameter [mm]: 10, Supplementary Article / Supplementary Info Info 2: with fastening material, Manufacturer part number: 3229S0007, Manufacturer: RIDEX, EAN number: 4059191322695

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Tightening angle [degrees]: 90, Manufacturer part number: 686S0015, Manufacturer: RIDEX, EAN number: 4059191685363

Spark Plug: 3 - Earthed Electrode, Fixed SAE connector, Interference Suppression 1 kOhm, Nickel Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19,0, Spark Position [mm]: 5,2, Thread Size: M14 x 1,25, Number of pins: 3, Manufacturer part number: 686S0036, Manufacturer: RIDEX, EAN number: 4059191685547

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 1, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M14x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3,4, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 25, Manufacturer part number: 686S0051, Manufacturer: RIDEX, EAN number: 4059191685646

Steering Gear Type: Rack and Pinion Steering Gear, Steering: with tie rod, Left-/right-hand drive vehicles: for left-hand drive vehicles, Operating Mode: Hydraulic, Manufacturer part number: 286S0030R, Manufacturer: RIDEX REMAN, EAN number: 4066423642216

Operating Mode: Hydraulic, Manufacturer part number: 286S0835R, Manufacturer: RIDEX REMAN, EAN number: 4066423718089
