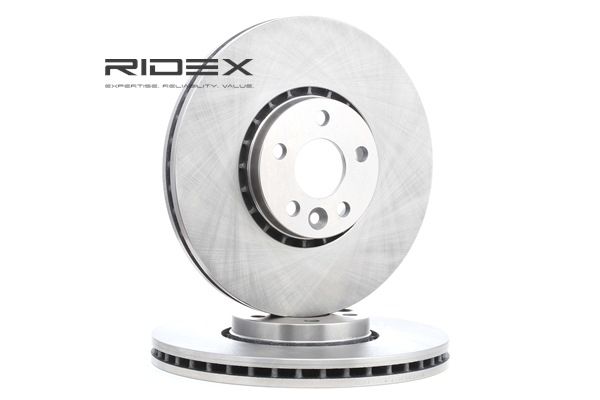

82B0622 Brake disc

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 22, Height: 36,7, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 255,7, Centering Diameter [mm]: 65, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 100, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0004, Manufacturer: RIDEX, EAN number: 4059191312610

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 25,1, Height: 49,9, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 312, Centering Diameter [mm]: 65,1, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,4, Bolt Hole Circle Ø [mm]: 112, Minimum thickness [mm]: 22,0, Inner Diameter [mm]: 146,0, Machining: Untreated, No. of holes 2: 9, Bore Diameter [mm]: 15,3, Supplementary Article / Supplementary Info Info 2: with bolts/screws, without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0031, Manufacturer: RIDEX, EAN number: 4059191312726

Fitting Position: Rear Axle, Brake Disc Type: solid, Brake Disc Thickness: 9,9, Height: 51,3, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 253, Centering Diameter [mm]: 65, Number of Holes: 5/10, Wheel Bolt Bore Diameter [mm]: 15,1, Bolt Hole Circle Ø [mm]: 112, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, usable for vehicles to construction year: 2016/11, Manufacturer part number: 82B0018, Manufacturer: RIDEX, EAN number: 4059191312641

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 30, Height: 77,2, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 347,8, Centering Diameter [mm]: 79, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 14,8, Bolt Hole Circle Ø [mm]: 120, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without bolts/screws, Drilled: no, Manufacturer part number: 82B0779, Manufacturer: RIDEX, EAN number: 4059191128518

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Spark Plug: 3 - Earthed Electrode, Fixed SAE connector, Interference Suppression 1 kOhm, Nickel Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19,0, Spark Position [mm]: 5,2, Thread Size: M14 x 1,25, Number of pins: 3, Manufacturer part number: 686S0036, Manufacturer: RIDEX, EAN number: 4059191685547

Filter type: Particulate Filter, Length [mm]: 242, Width [mm]: 204, Height: 36, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0237, Manufacturer: RIDEX, EAN number: 4059191329489

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 1, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M14x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3,4, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 25, Manufacturer part number: 686S0051, Manufacturer: RIDEX, EAN number: 4059191685646

Spark Plug: 1 - Earthed Electrode, Electrode Gap [mm]: 1,1, Spanner Size: 14, Thread Length [mm]: 26,5, Thread Size: M12 x 1.25, Tightening Torque [Nm]: 22, Manufacturer part number: 686S0086, Manufacturer: RIDEX, EAN number: 4059191980918

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 31, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0141, Manufacturer: RIDEX, EAN number: 4059191335756

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Connector Type SAE, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M14x1,25, Projection [mm]: 1,5, Resistor to [kOhm]: 15, Resistor from [kOhm]: 6, Tightening torque from [Nm]: 20, Manufacturer part number: 686S0040, Manufacturer: RIDEX, EAN number: 4059191650637

Fitting Position: Front Axle, Brake Disc Type: Vented, Brake Disc Thickness: 28, Height: 52, Material: Cast Iron, Surface: Uncoated, Outer Diameter [mm]: 324, Centering Diameter [mm]: 64, Number of Holes: 5/6, Wheel Bolt Bore Diameter [mm]: 15,7, Bolt Hole Circle Ø [mm]: 108, Machining: Untreated, Supplementary Article / Supplementary Info Info 2: without ABS sensor ring, without wheel hub, Drilled: no, Manufacturer part number: 82B1712, Manufacturer: RIDEX, EAN number: 4059191592081
