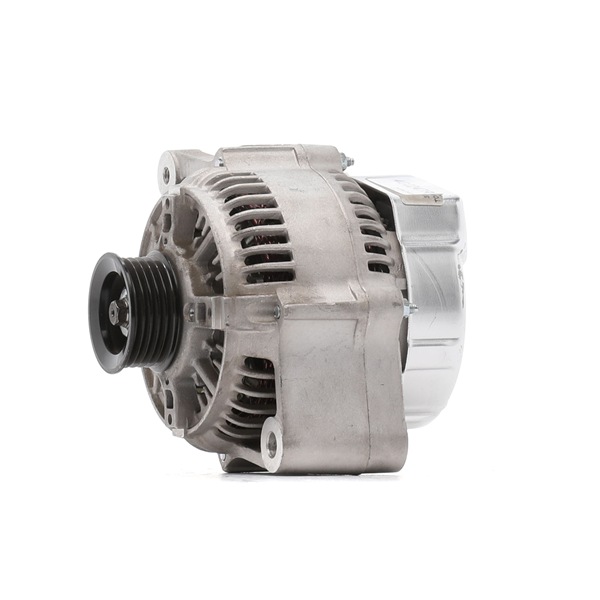

4G0247 Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Filter type: Filter Insert, Outer Diameter [mm]: 65, Height [mm]: 69, Inner Diameter [mm]: 24,2, Supplementary Article / Supplementary Info Info 2: with seal ring, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0017, Manufacturer: RIDEX, EAN number: 4059191356003

Product line: Nickel TT, Spark Plug: Nickel Middle Electrode, Electrode Gap [mm]: 1,3, Spanner Size: 16 mm, Thread Length [mm]: 25, Spark Position [mm]: 3, Thread Size: M 14 x 1,25, Number of pins: 1, Manufacturer part number: 686S0017, Manufacturer: RIDEX, EAN number: 4059191685387

Electrode Gap [mm]: 0,8, Spanner Size: 20,8, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0010, Manufacturer: RIDEX, EAN number: 4059191451371

Fitting Position: Front Axle, Rear Axle, Warning Contact Length [mm]: 97,5, Brake Type: Disc Brake, Manufacturer part number: 407W0002, Manufacturer: RIDEX, EAN number: 4059191227556

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, 78, Height [mm]: 76, Thread Size: 3/4-16 UNF-1B, 3/4\"-16F, Bypass Valve Opening Pressure [bar]: 2,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Gasket outside diameter [mm]: 72, Gasket inside diameter [mm]: 63, Manufacturer part number: 7O0048, Manufacturer: RIDEX, EAN number: 4059191245413

Filter type: Filter Insert, Outer Diameter [mm]: 65, Height [mm]: 104, Inner Diameter [mm]: 33, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0116, Manufacturer: RIDEX, EAN number: 4059191353736

Filter type: High efficiency air filter (HEPA), Particulate Filter, Length [mm]: 217,5, Width [mm]: 201, Height [mm]: 31, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0141, Manufacturer: RIDEX, EAN number: 4059191335756

Filter type: High efficiency air filter (HEPA), Particulate Filter, Length [mm]: 215, Width [mm]: 265, Height [mm]: 21, Recommended change interval [km]: 20000, Manufacturer part number: 424I0080, Manufacturer: RIDEX, EAN number: 4059191329403

Alternator Charging Current [A]: 55, Voltage [V]: 12, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 53, Number of grooves: 5, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), Bore Diameter 1 [mm]: 10,5, Cooling Type: Air cooled, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 90, Manufacturer part number: 4G0247R, Manufacturer: RIDEX REMAN, EAN number: 4067448167067
