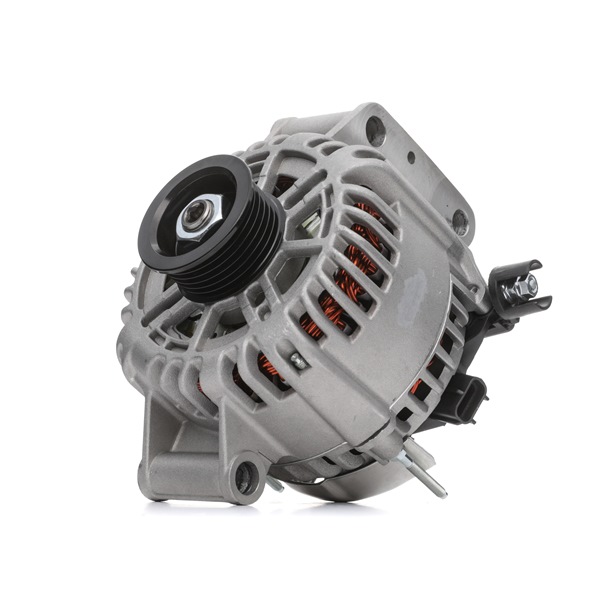

4G0021 Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

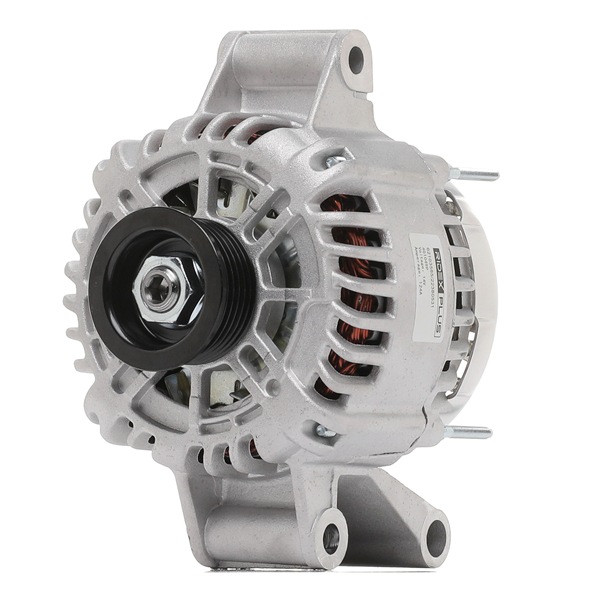

Alternator Charging Current [A]: 124, Voltage [V]: 12, Pulleys: with V-ribbed belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 53, Number of grooves: 6, Plug Type ID: FR,SIG,A, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+ (M6), Bore Diameter 1 [mm]: 10,2, Number of mounting bores: 3, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 40,5, Manufacturer part number: 4G1049, Manufacturer: RIDEX, EAN number: 4064138072625

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Fitting Position: Front Axle Left, Front Axle Right, Front axle both sides, Rod/Strut: Suspension Rod, Length [mm]: 335, Material: Steel, Thread Size 1: M12x1,5, Thread Size 2: M12x1,5, Pipe Diameter [mm]: 10, Supplementary Article / Supplementary Info Info 2: with fastening material, Manufacturer part number: 3229S0007, Manufacturer: RIDEX, EAN number: 4059191322695

Filter type: Particulate Filter, Length [mm]: 216, Width [mm]: 200, Height: 35, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0318, Manufacturer: RIDEX, EAN number: 4059191197583

Electrode Gap [mm]: 1,1, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0009, Manufacturer: RIDEX, EAN number: 4059191451364

Filter type: Particulate Filter, Length [mm]: 194, Width [mm]: 214, Height: 29, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0021, Manufacturer: RIDEX, EAN number: 4059191333707

Filter type: Filter Insert, Outer Diameter [mm]: 65, Height: 69, Inner Diameter [mm]: 24,2, Supplementary Article / Supplementary Info Info 2: with seal ring, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0017, Manufacturer: RIDEX, EAN number: 4059191356003

Alternator Charging Current [A]: 90, Voltage [V]: 14, Pulleys: with multi-belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 53, Number of grooves: 6, Plug Type ID: S-SIG-FR, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Four-point attachment, Clamp: B+(M6), Bore Diameter 1 [mm]: 14, Bore Diameter 2 [mm]: 10, Number of mounting bores: 3, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 40,5, Manufacturer part number: 4G1050, Manufacturer: RIDEX, EAN number: 4064138072687

Alternator Charging Current [A]: 90, Voltage [V]: 14, Pulleys: with multi-belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 53, Number of grooves: 6, Plug Type ID: S-SIG-FR, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Four-point attachment, Clamp: B+(M6), Bore Diameter 1 [mm]: 14, Bore Diameter 2 [mm]: 10, Number of mounting bores: 3, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 40,5, Manufacturer part number: 4G1050R, Manufacturer: RIDEX REMAN, EAN number: 4066423112474
