4G0078

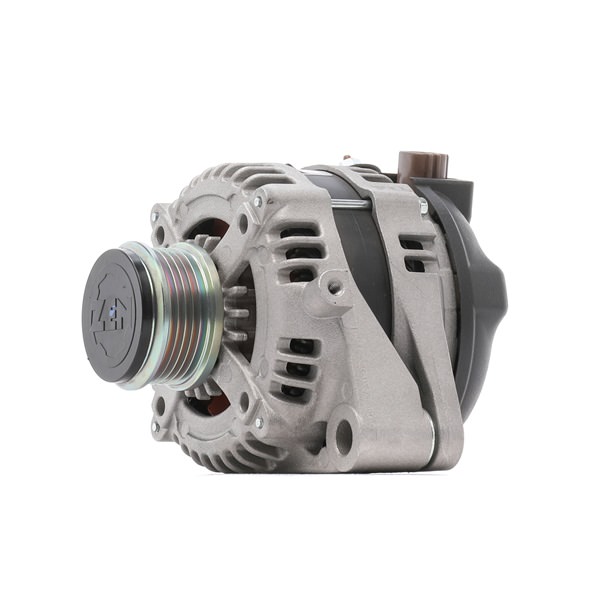

Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Lamp Type: H7, Light Design: Halogen, Rated Power [W]: 55, Voltage [V]: 12, Bulb Colour: transparent, Colour Temperature [K]: 4000, Socket Type bulb: PX26d, Luminous Flux [lm]: 1500, Manufacturer part number: 106B0002, Manufacturer: RIDEX, EAN number: 4059191822324

Filter type: Air Recirculation Filter, Shape: rectangular, Length [mm]: 344,5, Width [mm]: 135,5, Height: 70, Manufacturer part number: 8A0004, Manufacturer: RIDEX, EAN number: 4059191328819

Diameter: 58,2, Width [mm]: 38,5, Bore Diameter [mm]: 17, Thread Size: M14, Number of ribs: 5, Bolt Head-/Nut Design: Torx, Rotation Direction: Clockwise rotation, Depth [mm]: 12,3, Supplementary Article / Supplementary Info Info 2: Requires special tools for mounting, Manufacturer part number: 1390F0057, Manufacturer: RIDEX, EAN number: 4059191729159

Alternator Charging Current [A]: 90, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 5, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), L IG S M, Bore Diameter 1 [mm]: 10, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 41, Manufacturer part number: 4G0732, Manufacturer: RIDEX, EAN number: 4064138045070

Alternator Charging Current [A]: 90, Voltage [V]: 12, Pulleys: without belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Vehicle Main Current: for vehicles with 12V main current, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: M+(B6), L,IG,S,M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 0, Manufacturer part number: 4G0389, Manufacturer: RIDEX, EAN number: 4059191817344

Alternator Charging Current [A]: 100, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 5, Plug Type ID: 0131, L-IG-S-M Plug 131, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: L-IG-S-M, M6 B+, Bore Diameter 1 [mm]: 10, Bore Diameter 2 [mm]: 10,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 41, Manufacturer part number: 4G0078R, Manufacturer: RIDEX REMAN, EAN number: 4067448131570

Alternator Charging Current [A]: 100, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 5, Plug Type ID: 0131, L-IG-S-M Plug 131, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: L-IG-S-M, M6 B+, Bore Diameter 1 [mm]: 10, Bore Diameter 2 [mm]: 10,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 41, Manufacturer part number: 4G0078P, Manufacturer: RIDEX PLUS, EAN number: 4067448819027

Alternator Charging Current [A]: 90, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 5, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), L IG S M, Bore Diameter 1 [mm]: 10, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 41, Manufacturer part number: 4G0732R, Manufacturer: RIDEX REMAN, EAN number: 4067448151011
