4G0458 Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Product line: Nickel, Spark Plug: 2 - Earthed Electrode, Nickel Middle Electrode, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: M14 x 1,25, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 43, Number of pins: 2, Manufacturer part number: 686S0005, Manufacturer: RIDEX, EAN number: 4059191451388

Filter type: Filter Insert, Height: 143, Height 1 [mm]: 97, Diameter: 71,5, Diameter 1 [mm]: 15,2, Supplementary Article / Supplementary Info: with gaskets/seals, Manufacturer part number: 7O0002, Manufacturer: RIDEX, EAN number: 4059191236152

Electrode Gap [mm]: 1,1, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0009, Manufacturer: RIDEX, EAN number: 4059191451364

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Connector Type SAE, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,7, Spanner Size: 16 mm, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Size: M14x1,25, Projection [mm]: 1,5, Resistor to [kOhm]: 15, Resistor from [kOhm]: 6, Tightening torque from [Nm]: 20, Manufacturer part number: 686S0040, Manufacturer: RIDEX, EAN number: 4059191650637

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 1, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M14x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3,4, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 25, Manufacturer part number: 686S0051, Manufacturer: RIDEX, EAN number: 4059191685646

Filter type: Particulate Filter, Length [mm]: 242, Width [mm]: 204, Height: 36, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0237, Manufacturer: RIDEX, EAN number: 4059191329489

Alternator Charging Current [A]: 80, Voltage [V]: 12, Pulleys: with multi-belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 49, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Double Pivot Lever, Clamp: B+(M8), L DFM, Bore Diameter 1 [mm]: 10, Cooling Type: Air cooled, Number of mounting bores: 4, Number of threaded holes: 2, Distance from belt pulley to alternator [mm]: 42, Manufacturer part number: 4G1320, Manufacturer: RIDEX, EAN number: 4065739008143

Alternator Charging Current [A]: 80, Voltage [V]: 12, Pulleys: with multi-belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 49, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Double Pivot Lever, Clamp: B+(M8), L DFM, Bore Diameter 1 [mm]: 10, Cooling Type: Air cooled, Number of mounting bores: 4, Number of threaded holes: 2, Distance from belt pulley to alternator [mm]: 42, Manufacturer part number: 4G1320R, Manufacturer: RIDEX REMAN, EAN number: 4066423115413

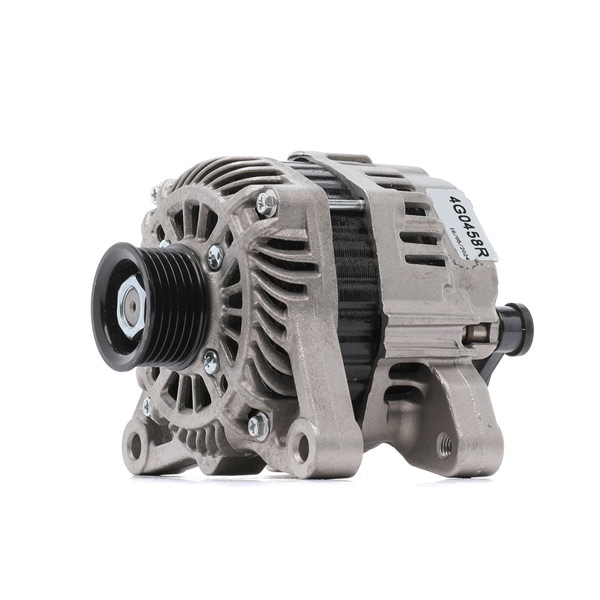

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with multi-belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 49, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Double Pivot Lever, Clamp: B+ (M8), COM/BSS, M8 B+, Bore Diameter 1 [mm]: 10, Number of mounting bores: 4, Number of threaded holes: 2, Distance from belt pulley to alternator [mm]: 42, Manufacturer part number: 4G0458R, Manufacturer: RIDEX REMAN, EAN number: 4067448151608
