4G0670

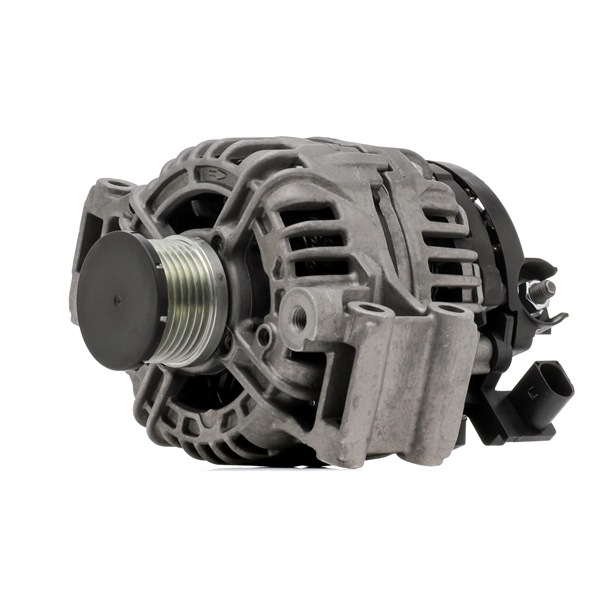

Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Filter type: Spin-on Filter, Outer Diameter [mm]: 78, Height: 78,5, Thread Size: 3/4\" 16 UNF-2B, Bypass Valve Opening Pressure [bar]: 1, Quantity: 1, Manufacturer part number: 7O0075, Manufacturer: RIDEX, EAN number: 4059191236565

Product line: Nickel TT, Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Nickel mass electrode, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Connector type: Solid SAE, Tightening Torque [Nm]: 22, Diameter: 14, Weight [g]: 48, Manufacturer part number: 686S0024, Manufacturer: RIDEX, EAN number: 4059191685431

Electrode Gap [mm]: 1,1, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0009, Manufacturer: RIDEX, EAN number: 4059191451364

Filter type: Particulate Filter, Length [mm]: 215, Width [mm]: 265, Height: 21, Quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0080, Manufacturer: RIDEX, EAN number: 4059191329403

Alternator Charging Current [A]: 90, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 49, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9,5, Number of mounting bores: 4, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 28,5, Manufacturer part number: 4G1252, Manufacturer: RIDEX, EAN number: 4064138405911

Width [mm]: 34, Thread Size: M16X1,5, Inner Diameter [mm]: 17, Outer Diameter [mm]: 54, Rotation Direction: Clockwise rotation, Number of grooves: 6, Manufacturer part number: 1390F0044, Manufacturer: RIDEX, EAN number: 4059191728633

Alternator Charging Current [A]: 90, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 49, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9,5, Number of mounting bores: 4, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 28,5, Manufacturer part number: 4G1252R, Manufacturer: RIDEX REMAN, EAN number: 4069197175287

Alternator Charging Current [A]: 90, Voltage [V]: 12, 14, Pulleys: with freewheel belt pulley, Belt Pulley Ø [mm]: 49, Rotation Direction: Clockwise rotation, Number of mounting bores: 4, Manufacturer part number: 4G1673R, Manufacturer: RIDEX REMAN, EAN number: 4069197190167
