4G1004

Fitment unknown

Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Number of mounting bores: 2, Number of threaded holes: 1, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Number of mounting bores: 2, Number of threaded holes: 0, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Fitting Position: Rear Axle, Brake System: TRW / LUCAS / GIRLING, Wear Warning Contact: not prepared for wear warning indicator, Supplementary Article / Supplementary Info: with accessories, with spring, Thickness: 17, Quantity Unit: Axle Set, Height: 52,9, Width [mm]: 87, for brake disc diameter [mm]: 249, Manufacturer part number: 402B0029, Manufacturer: RIDEX, EAN number: 4059191313075

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Length [mm]: 130, Spanner Size: 10, Glow Plug Design: Pencil-type Glow Plug, after-glow capable, Fitting Depth [mm]: 28, Connector type: PIN, Tightening torque from [Nm]: 15, Cone Pitch: 63, Thread Size 1: M 10 x 1, Supplementary Article / Supplementary Info Info 2: without pressure sensor, Manufacturer part number: 243G0006, Manufacturer: RIDEX, EAN number: 4059191651467

Filter type: Spin-on Filter, Height: 92, Thread Size: 3/4-16 UNF, Diameter 1 [mm]: 76, Diameter 2 [mm]: 71,5, Manufacturer part number: 7O0016, Manufacturer: RIDEX, EAN number: 4059191236374

Fitting Position: Front Axle Left, Front Axle Right, Front axle both sides, Rod/Strut: Suspension Rod, Length [mm]: 335, Material: Steel, Thread Size 1: M12x1,5, Thread Size 2: M12x1,5, Pipe Diameter [mm]: 10, Supplementary Article / Supplementary Info Info 2: with fastening material, Manufacturer part number: 3229S0007, Manufacturer: RIDEX, EAN number: 4059191322695

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, 78, Height: 76, Thread Size: 3/4-16 UNF-1B, 3/4\"-16F, Bypass Valve Opening Pressure [bar]: 2,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Gasket outside diameter [mm]: 72, Gasket inside diameter [mm]: 63, Manufacturer part number: 7O0048, Manufacturer: RIDEX, EAN number: 4059191245413

Product line: Industrial, Spark Plug: 1 - Earthed Electrode, Platinum Middle Electrode, with gasket seat, Electrode Gap [mm]: 1, Spanner Size: 16 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M14x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3,4, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 25, Manufacturer part number: 686S0051, Manufacturer: RIDEX, EAN number: 4059191685646

Diameter 1/Diameter 2 [mm]: 53,7/17,0, Width [mm]: 40,1, Supplementary Article / Supplementary Info Info 2: Requires special tools for mounting, Number of grooves: 6, Distance to first groove [mm]: 13,7, Manufacturer part number: 1390F0049, Manufacturer: RIDEX, EAN number: 4059191728879

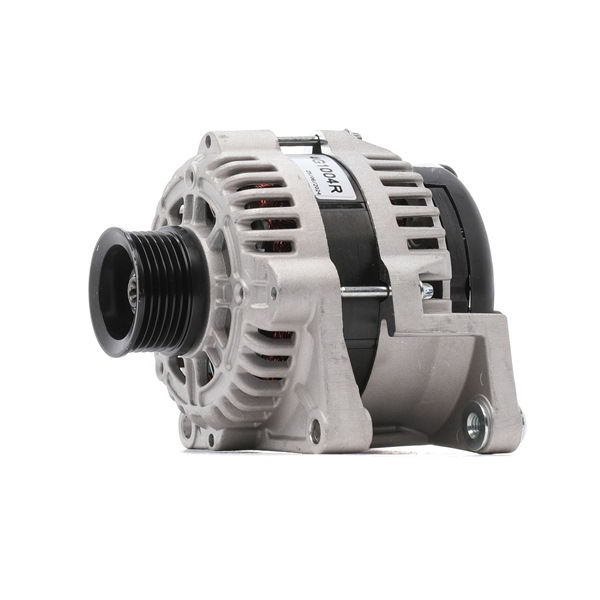

Alternator Charging Current [A]: 100, Voltage [V]: 12, Pulleys: with multi-belt pulley, Belt Pulley Ø [mm]: 53, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Double Pivot Lever, Clamp: B+(M8),F,L, Number of mounting bores: 4, Number of threaded holes: 0, Manufacturer part number: 4G1004R, Manufacturer: RIDEX REMAN, EAN number: 4067448144969
