4G1030 Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Alternator Charging Current [A]: 55, Voltage [V]: 12, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 55, Number of ribs: 6, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(9,8),D+, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 92, Manufacturer part number: 4G0097, Manufacturer: RIDEX, EAN number: 4059191675081

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, 0,9, Spanner Size: 16 mm, Thread Length [mm]: 19, Thread Size: M14 x 1,25, Assy./disassy. by qualified personnel required!: , Manufacturer part number: 686S0003, Manufacturer: RIDEX, EAN number: 4059191451357

Filter type: Spin-on Filter, Outer Diameter [mm]: 65, Height [mm]: 76,5, Thread Size: 3/4" 16UNF 2B, 3/4"-16UNF-2B, Sealing Ring Diameter [mm]: 54,9, 62,9, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Diameter [mm]: 65,2, Diameter 2 [mm]: 61,5, Valve type: Overflow Valve, Net Weight [g]: 209, Sealing Ring Diameter up to [mm]: 62, Tightening Torque [Nm]: 16, Manufacturer part number: 7O0008, Manufacturer: RIDEX, EAN number: 4059191236312

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, 78, Height [mm]: 76, Thread Size: 3/4-16 UNF-1B, 3/4\"-16F, Bypass Valve Opening Pressure [bar]: 2,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Gasket outside diameter [mm]: 72, Gasket inside diameter [mm]: 63, Manufacturer part number: 7O0048, Manufacturer: RIDEX, EAN number: 4059191245413

Electrode Gap [mm]: 1,1, Spanner Size: 16 mm, External Thread [mm]: 14, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 28, Number of pins: 1, Tightening angle [degrees]: 90, Manufacturer part number: 686S0009, Manufacturer: RIDEX, EAN number: 4059191451364

Product line: Iridium TT, Spark Plug: 1 - Earthed Electrode, Iridium Middle Electrode, Spanner Size: 16 mm, Thread Size 1: 19, Tightening Torque [Nm]: 22, Diameter [mm]: 14, Weight [g]: 43, Manufacturer part number: 686S0034, Manufacturer: RIDEX, EAN number: 4059191685523

Alternator Charging Current [A]: 55, Voltage [V]: 12, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 55, Number of ribs: 6, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(9,8),D+, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 92, Manufacturer part number: 4G0097R, Manufacturer: RIDEX REMAN, EAN number: 4059191973132

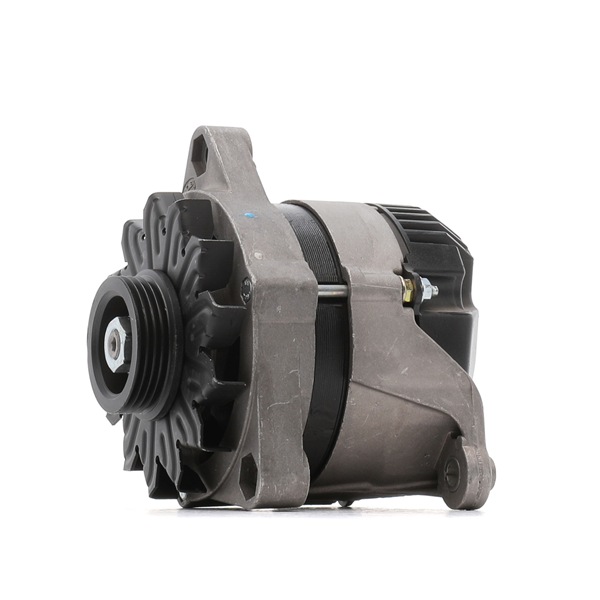

Alternator Charging Current [A]: 65, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 67, Number of grooves: 1, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Double Pivot Lever, Clamp: M6 B+, Bore Diameter 1 [mm]: 10, Number of mounting bores: 3, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 52, Manufacturer part number: 4G1030R, Manufacturer: RIDEX REMAN, EAN number: 4064138274890

Alternator Charging Current [A]: 65, Voltage [V]: 12, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 60, Number of grooves: 4, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+ (M8), D+ (M5), Bore Diameter 1 [mm]: 10, Number of mounting bores: 3, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 55, Manufacturer part number: 4G0193R, Manufacturer: RIDEX REMAN, EAN number: 4059191972975
