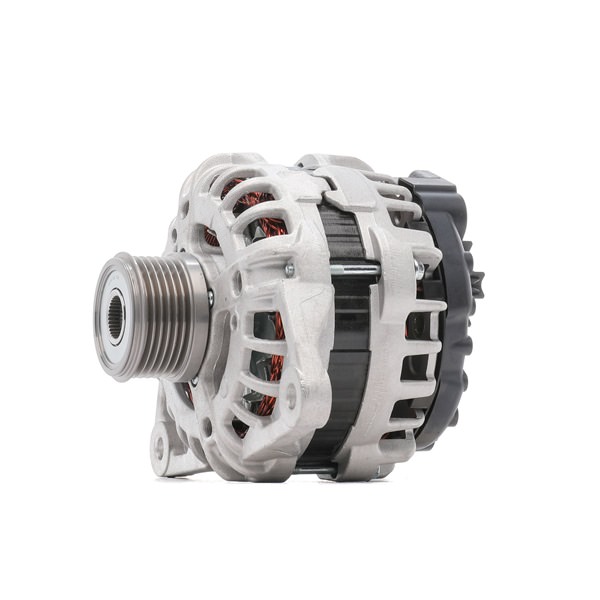

4G1075 Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Filter type: Spin-on Filter, Height [mm]: 92, Thread Size: 3/4-16 UNF, Diameter 1 [mm]: 76, Diameter 2 [mm]: 71,5, Manufacturer part number: 7O0016, Manufacturer: RIDEX, EAN number: 4059191236374

Filter type: Spin-on Filter, Height [mm]: 73, Sealing Ring Diameter [mm]: 72, Connecting thread: 3/4\" 16 UNF, Diameter: 76, Manufacturer part number: 7O0032, Manufacturer: RIDEX, EAN number: 4059191236794

Filter type: Spin-on Filter, Outer Diameter [mm]: 76, 78, Height [mm]: 76, Thread Size: 3/4-16 UNF-1B, 3/4\"-16F, Bypass Valve Opening Pressure [bar]: 2,5, Supplementary Article / Supplementary Info Info 2: with one anti-return valve, Gasket outside diameter [mm]: 72, Gasket inside diameter [mm]: 63, Manufacturer part number: 7O0048, Manufacturer: RIDEX, EAN number: 4059191245413

Spark Plug: 1 - Earthed Electrode, Electrode Gap [mm]: 1,1, Spanner Size: 14, Thread Length [mm]: 26,5, Thread Size: M12 x 1.25, Tightening Torque [Nm]: 22, Manufacturer part number: 686S0086, Manufacturer: RIDEX, EAN number: 4059191980918

Spark Plug: 1 - Earthed Electrode, Copper Centre Electrode, Nickel Middle Electrode, with gasket seat, Electrode Gap [mm]: 0,9, Spanner Size: 14 mm, Thread Length [mm]: 26,5, Spark Position [mm]: 5, Thread Size: M12x1.25, Connector type: SAE, Packing Type: Box, Projection [mm]: 3, Resistor to [kOhm]: 9, Resistor from [kOhm]: 3, Tightening torque from [Nm]: 20, Manufacturer part number: 686S0053, Manufacturer: RIDEX, EAN number: 4059191685660

Filter type: High efficiency air filter (HEPA), Particulate Filter, Length [mm]: 225, Width [mm]: 201, Height [mm]: 17, Required quantity: 1, Recommended change interval [km]: 20000, Manufacturer part number: 424I0056, Manufacturer: RIDEX, EAN number: 4059191334940

Diameter 1/Diameter 2 [mm]: 54,9/17,0, Width [mm]: 36,1, Supplementary Article / Supplementary Info Info 2: Requires special tools for mounting, Number of grooves: 6, Distance to first groove [mm]: 9,9, Manufacturer part number: 1390F0145, Manufacturer: RIDEX, EAN number: 4069197224428

Alternator Charging Current [A]: 150, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 55, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Alternator Type: Multi-function, Fastening Type: Single pivoted lever, Clamp: B+ (M8), L DFM, Bore Diameter 1 [mm]: 11, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 37,6, Manufacturer part number: 4G1075R, Manufacturer: RIDEX REMAN, EAN number: 4067448169719

Alternator Charging Current [A]: 150, Voltage [V]: 12, Pulleys: without belt pulley, Rated Voltage [V]: 14, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Double Pivot Lever, Recommended additional repairs: V-Belt/V-Ribbed Belt, Clamp: B+(M8), L FR, Bore Diameter 1 [mm]: 10,5, Number of threaded holes: 0, Manufacturer part number: 4G1074, Manufacturer: RIDEX, EAN number: 4064138074100
