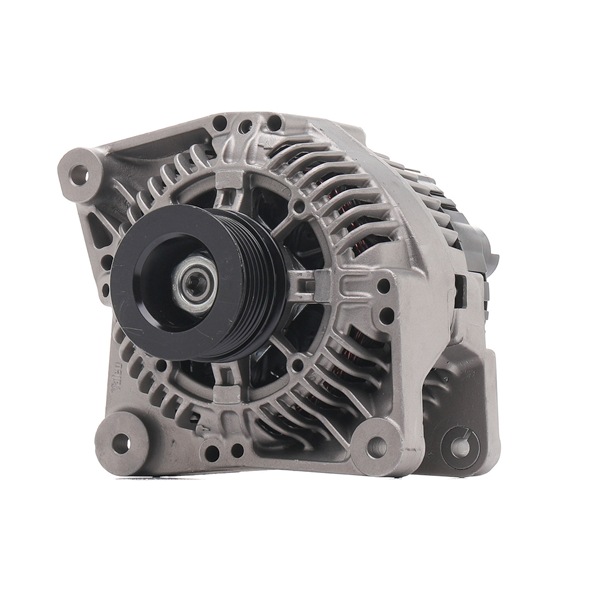

4G0590R Alternator

Alternator Charging Current [A]: 85, Voltage [V]: 12, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 58, Number of grooves: 7, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6), IG-S-L-M, Bore Diameter 1 [mm]: 10, Number of mounting bores: 2, Number of threaded holes: 1, Distance from belt pulley to alternator [mm]: 37, Manufacturer part number: 4G0113, Manufacturer: RIDEX, EAN number: 4059191633838

Alternator Charging Current [A]: 80, Voltage [V]: 14, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 2, Supplementary Article / Supplementary Info: with integrated regulator, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: Single pivoted lever, Clamp: B+(M6),D+, Bore Diameter 1 [mm]: 8,5, Number of mounting bores: 2, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 95, Manufacturer part number: 4G0523, Manufacturer: RIDEX, EAN number: 4064138040914

Alternator Charging Current [A]: 140, Voltage [V]: 14, Pulleys: with freewheel belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Connector/Clamp: without connection for speed sensor, Fastening Type: Double Pivot Lever, Clamp: M8 B+, Bore Diameter 1 [mm]: 9, Number of mounting bores: 4, Connector type: B+(M8), Number of threaded holes: 2, Thread Size: M8X1,25, Distance from belt pulley to alternator [mm]: 39,6, Manufacturer part number: 4G0557, Manufacturer: RIDEX, EAN number: 4059191979325

Spark Plug: 1 - Earthed Electrode, Nickel Middle Electrode, Unscrewable SAE connector, Electrode Gap [mm]: 0,8, Spanner Size: 16 mm, External Thread [mm]: 12, Thread Length [mm]: 19, Spark Position [mm]: 3, Thread Pitch [mm]: 1,25, Tightening Torque [Nm]: 23, Tightening angle [degrees]: 90, Manufacturer part number: 686S0015, Manufacturer: RIDEX, EAN number: 4059191685363

Filter type: Spin-on Filter, Height [mm]: 73, Sealing Ring Diameter [mm]: 72, Connecting thread: 3/4\" 16 UNF, Diameter [mm]: 76, Manufacturer part number: 7O0032, Manufacturer: RIDEX, EAN number: 4059191236794

Compressor ID: FS10-154, Compressor Oil: PAG 46, Belt Pulley Ø [mm]: 129, Refrigerant: R134a, Inlet Ø [mm]: 16,4, Outlet Ø [mm]: 13,0, Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, Number of grooves: 6, Operating voltage [V]: 12, Capacity Compressor [cc]: 154, Shape: rectangular, Manufacturer part number: 447K0054, Manufacturer: RIDEX, EAN number: 4059191242887

Alternator Charging Current [A]: 100, Voltage [V]: 14, Pulleys: with V-ribbed belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 57, Number of grooves: 6, Plug Type ID: B+(M8), L, L, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: 3-point attachment, Clamp: M8 B+, Bore Diameter 1 [mm]: 8, Number of mounting bores: 4, Number of threaded holes: 0, Distance from belt pulley to alternator [mm]: 46, Manufacturer part number: 4G0590, Manufacturer: RIDEX, EAN number: 4064138037907

Compressor ID: FS10-170, Compressor Oil: PAG 46, Oil Fill Quantity [ml]: 190, Belt Pulley Ø [mm]: 129, Voltage [V]: 12, Pulleys: with multi-belt pulley, Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with seal ring, Number of grooves: 7, Connector Shape: rectangular, Manufacturer part number: 447K0024, Manufacturer: RIDEX, EAN number: 4059191242467

Alternator Charging Current [A]: 70, Voltage [V]: 12, Pulleys: with belt pulley, Rated Voltage [V]: 14, Belt Pulley Ø [mm]: 65, Number of grooves: 5, Vehicle Main Current: for vehicles with 12V main current, Rotation Direction: Clockwise rotation, Alternator Type: excl. vacuum pump, Fastening Type: 3-point attachment, Clamp: B+(M6),D+(M5), W, Bore Diameter 1 [mm]: 8, Number of mounting bores: 3, Distance from belt pulley to alternator [mm]: 33, Manufacturer part number: 4G0375R, Manufacturer: RIDEX REMAN, EAN number: 4067448155811

Compressor ID: FS10-154, Compressor Oil: PAG 46, Oil Fill Quantity [ml]: 200, Belt Pulley Ø [mm]: 129, Voltage [V]: 12, Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with seal ring, Number of grooves: 6, Connector Shape: rectangular, Manufacturer part number: 447K0054R, Manufacturer: RIDEX REMAN, EAN number: 4067448977260

Compressor ID: FS10-170, Compressor Oil: PAG 46, Belt Pulley Ø [mm]: 129, Voltage [V]: 12, Supplementary Article / Supplementary Info Info 2: with PAG compressor oil, with seal ring, Number of grooves: 7, Connector Shape: rectangular, Manufacturer part number: 447K0024R, Manufacturer: RIDEX REMAN, EAN number: 4067448980420

Alternator Charging Current [A]: 120, Voltage [V]: 12, Pulleys: with belt pulley, Length 1 [mm]: 48,00, Length 2 [mm]: 21,00, Length 3 [mm]: 56,00, Manufacturer part number: 4G1688R, Manufacturer: RIDEX REMAN, EAN number: 4067448163427
