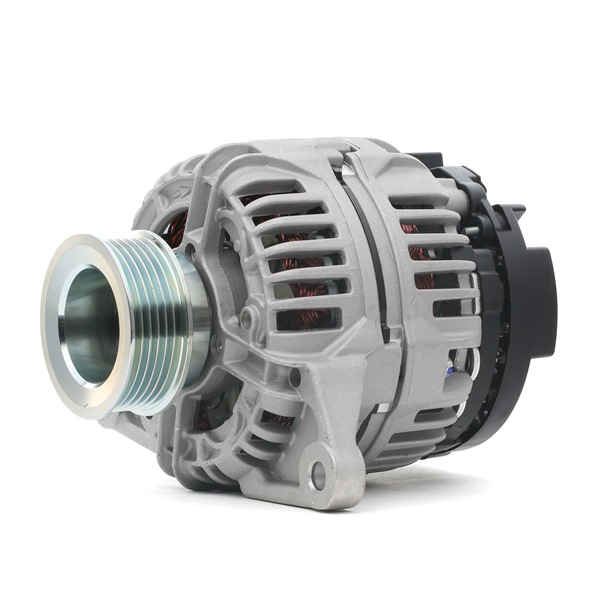

4G0390R Alternator
- Alternator Charging Current [A]: 110
- Voltage [V]: 12
- Pulleys: with belt pulley
- Rated Voltage [V]: 14
- Belt Pulley Ø [mm]: 55
- Number of grooves: 7
- Vehicle Main Current: for vehicles with 12V main current
- Rotation Direction: Clockwise rotation
- Alternator Type: excl. vacuum pump
- Clamp: B+(M8),L
- Bore Diameter 1 [mm]: 11
- Number of mounting bores: 3
- Number of threaded holes: 0
- Distance from belt pulley to alternator [mm]: 41
- Manufacturer part number: 4G0390R
- Manufacturer: RIDEX REMAN
- EAN number: 4066423975932
- Weight [kg]: 6.246
- The actual appearance of the product may differ from the image
- OEM number
- Suitable vehicles
- Documentation
- Top sellers in your country
OEM number
- CHRYSLER 38522314F
- FIAT 504009977
- FIAT 504010576
- FIAT 71723391
- FIAT 71723392
- FIAT 71780134
- FIAT 71780156
- IVECO 0000504009977
- IVECO 504009977
- IVECO 504010576
- IVECO 504087183
- IVECO 504225814
- IVECO 505524110
- IVECO 71723391
- IVECO 71723392
- IVECO 71780134
- IVECO 71780156
- NEW HOLLAND 2855975
- RENAULT 5040099777
- RENAULT 5040099788
- SPERRY NEW HOLLAND 2855975
- VM 38522314F
- VM 38522341F
- VM 8520046A
Suitable vehicles
CITROËN
-
CITROËN Relay II Minibus (250) (Year of Construction 09.2006 - ..., 157 PS, Diesel)
-
CITROËN Relay II Platform / Chassis (250) (Year of Construction 09.2006 - 12.2015, 146 - 157 PS, Diesel)
-
CITROËN Relay II Van (250) (Year of Construction 09.2006 - 12.2015, 156 - 157 PS, Diesel)
FIAT
-
FIAT Ducato II Minibus (244) (Year of Construction 12.2001 - 07.2006, 110 PS, Diesel)
-
FIAT Ducato II Platform/Chassis (244) (Year of Construction 12.2001 - 07.2006, 110 PS, Diesel)
-
FIAT Ducato II Van (244) (Year of Construction 12.2001 - 07.2006, 110 PS, Diesel)
-
FIAT Ducato III Minibus (250, 290) (Year of Construction 07.2006 - ..., 100 - 158 PS, CNG, Diesel)
-
FIAT Ducato III Platform / Chassis (250, 290) (Year of Construction 07.2006 - ..., 100 - 177 PS, CNG, Diesel)
-
FIAT Ducato III Van (250, 290) (Year of Construction 07.2006 - ..., 100 - 158 PS, CNG, Diesel)
IVECO
-
IVECO Daily III Box Body / Estate (Year of Construction 07.1999 - 07.2007, 95 - 166 PS, Diesel)
-
IVECO Daily III Minibus (Year of Construction 01.2003 - 05.2006, 116 - 136 PS, Diesel)
-
IVECO Daily III Platform / Chassis (Year of Construction 09.2002 - 04.2006, 95 - 166 PS, Diesel)
-
IVECO Daily IV Box Body / Estate (Year of Construction 05.2006 - 08.2011, 95 - 176 PS, CNG, Diesel)
-
IVECO Daily IV Minibus (Year of Construction 05.2006 - 08.2011, 136 PS, Diesel)
-
IVECO Daily IV Platform / Chassis (Year of Construction 05.2006 - 08.2011, 95 - 176 PS, CNG, Diesel)
-
IVECO Daily V Box Body / Estate (Year of Construction 09.2011 - 02.2014, 106 - 170 PS, CNG, Diesel)
-
IVECO Daily V Platform / Chassis (Year of Construction 09.2011 - 02.2014, 106 - 170 PS, Diesel)
-
IVECO Massif Pickup (Year of Construction 10.2008 - 02.2011, 146 - 176 PS, Diesel)
-
IVECO Massif Single Cab (Year of Construction 10.2008 - 02.2011, 146 - 176 PS, Diesel)
-
IVECO Massif Station Wagon (Year of Construction 10.2008 - 02.2011, 146 - 176 PS, Diesel)
PEUGEOT
-
PEUGEOT Boxer Minibus (250) (Year of Construction 04.2006 - 12.2015, 156 PS, Diesel)
-
PEUGEOT Boxer Platform / Chassis (250) (Year of Construction 04.2006 - 12.2015, 156 PS, Diesel)
-
PEUGEOT Boxer Van (250) (Year of Construction 04.2006 - 12.2015, 156 PS, Diesel)
UAZ
-
UAZ Patriot (3163) (Year of Construction 06.2006 - ..., 116 PS, Diesel)
